Z86 70W COB Specification


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    1.1 Technical Parameters

    Model: XT1505SELD70-J
    LED Quantity: 240(2235)
    Module Quantity (pcs): 2
    Power: 70W
    Solar Panel: Monocrystalline Silicon 36V/90W
    Battery: Grade A Lithium Ion Battery 20Ah/24V
    Adjustable Angle of Module(±15°): Yes
    Control Mode: Light Control+Time Control
    Working time under full power: 12h
    Working time under intelligent power: 84h
    Charging time(1000W/m2) 6h
    On-off threshold level: on≦8LUX, OFF≧10LUX
    Secondary lighting distribution: Borosilicate
    Beam Angle: C0~180 160°/ T90~270 80°
    Protection Grade: IP65
    Photoelectric Parameter
    Color Temperature(K): 3000-6500K
    CRI(Ra): 70
    Lumens(lm): 8000-9000lm
    Intelligent Mode: Yes
    Working under rainy days: 7-10 days
    Package:
    Net Weight((kg): 22.3kg±5%
    Gross Weight (kg): 47.0kg±5%(2pcs/box)
    Product Dimension (mm): 1505×428×62mm±5%
    Package Dimension(mm): 1555×227×495mm±5%
    Quantity in 20/40 Feet Container(Accessories) 228/578PCS(With Pallet)
    Environmental Temperature:
    Discharging Temperature (℃): -20~60
    Charging Temperature (℃): -20~60
    Storage Temperature (℃): 0~45
    Installing Parameter:
    Diameter of Pole: Ø89mm
    Screw Fixation: Yes
    Wind resistance level(km/h): 209
    Installation Height (m): 8-9
    Installation Distance(m): 32-36
    Irradiation Area(m2) 324

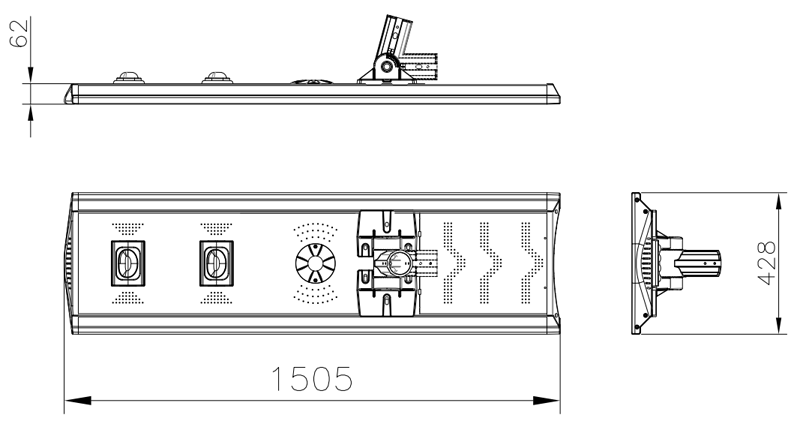

    1.2 Product Dimension:(mm)

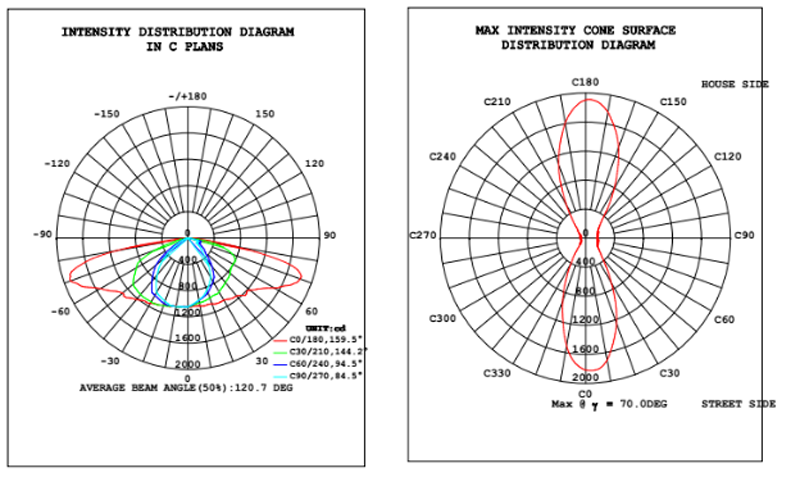

    1.3 Light Distribution

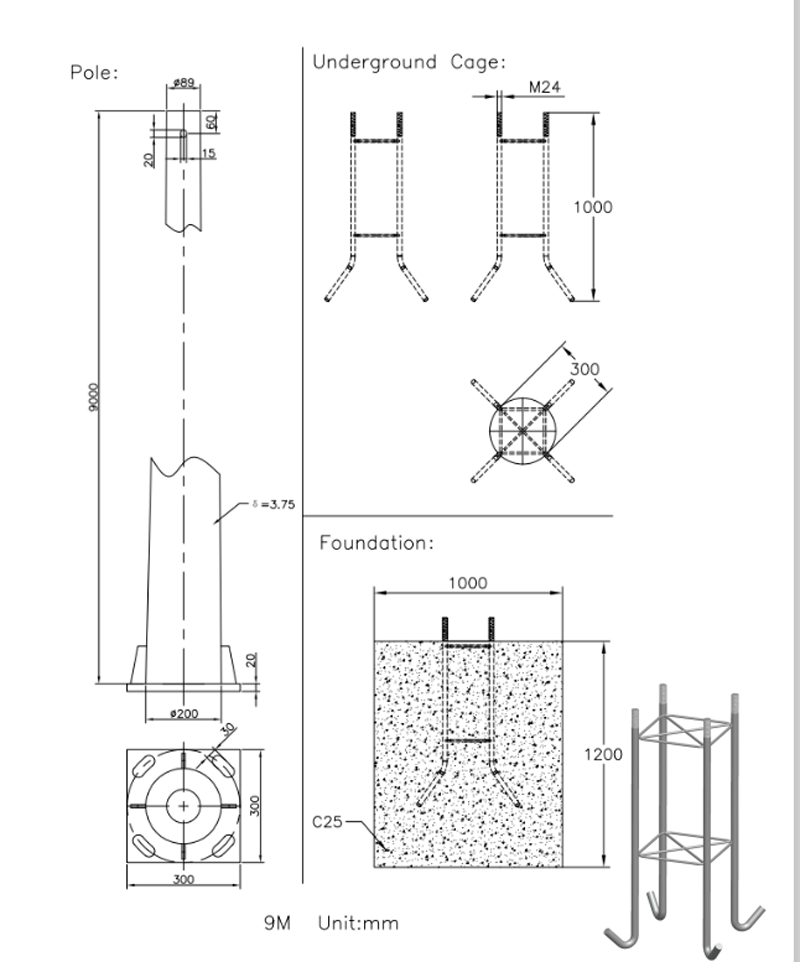

    1.4 Light Pole Sketch

    微信图片_20190330104842

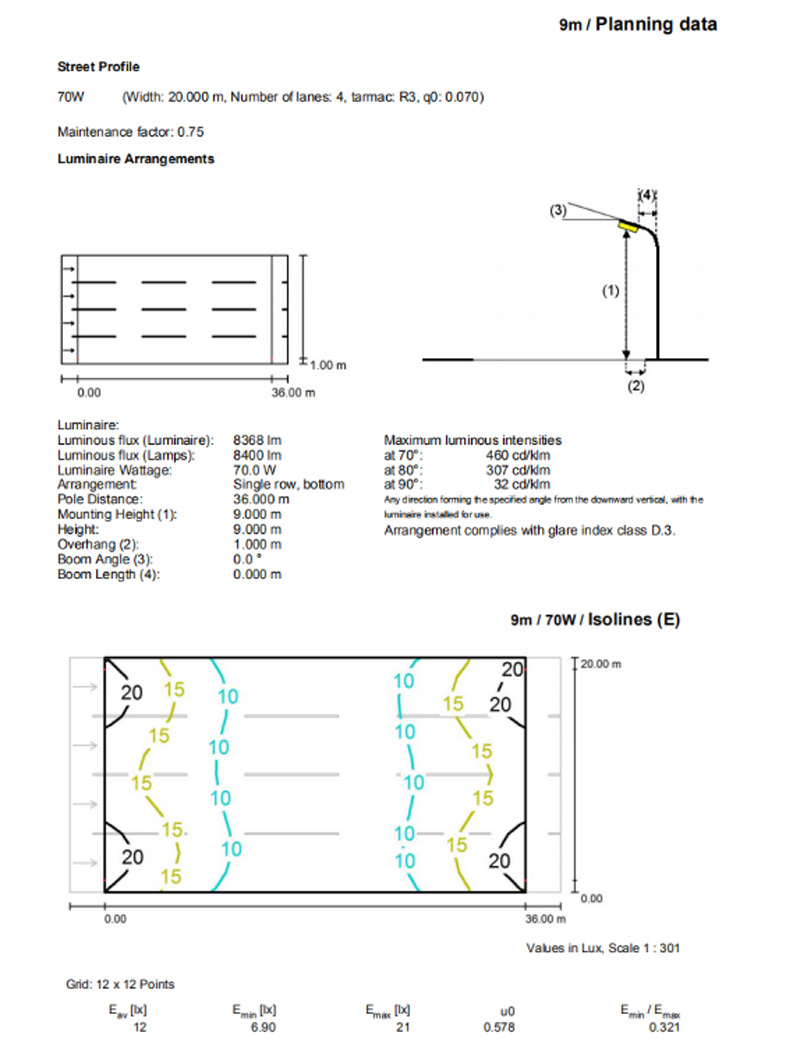

    1.5 70W Illumination Simulation-9m

    微信图片_20190330105036



    2 Package

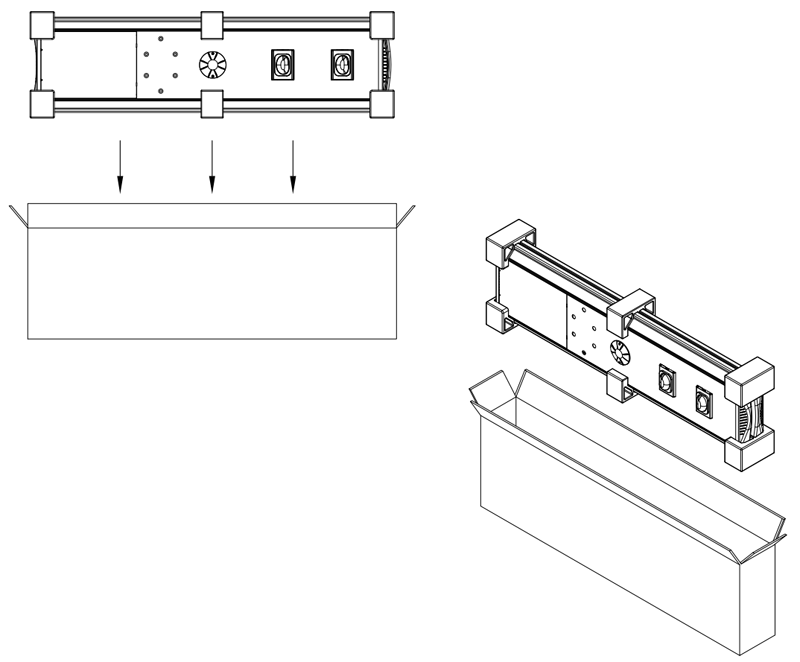

    2.1 Package Sketch

    2.2 Package List

    Item

    Products

    Unit

    Quantity

    Note

    1

    70W Solar Street Light

    PCS

    2



    2

    6mm Allen Wrench

    PCS

    1

    2%

    3

    14mm Allen Wrench

    PCS

    1

    2%

    4

    Installation Instruction

    PCS

    1



    5

    Certificate of Approval

    Sheet

    1



    6

    Test Report

    PCS

    1

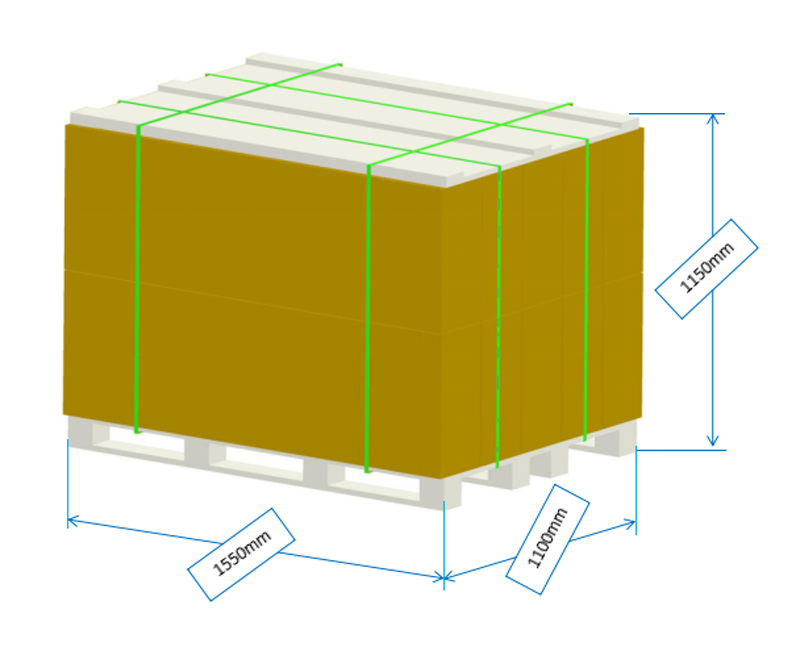

    2.3 Pallet Sketch
    Pallet Size:1550×1100×115mm
    Goods with Pallet Size:1550×1100×1150mm
    Quantity:10 Boxes×2pcs/Box=20Pcs



    微信图片_20190330105101
