Z86 60W SMD Specification
1.1 Product Parameter
| Model： | XT1355SELD60-D5 |
| LED Quantity： | 30 PCS 5050 |
| Module Quantity (pcs)： | 2 |
| Power： | 60W |
| Solar Panel： | Monocrystalline Silicon 36V/80W |
| Battery： | Grade A Lithium Ion Battery 17.5Ah/24V |
| Adjustable Angle of Module(±10°)： | Yes |
| Contrtol Mode： | Light Control+Time Control |
| Working time under full power： | 12h |
| Working time under intelligent power： | 84h |
| Charging time（1000W/m2） | 6h |
| On-off threshold level： | on≦8LUX，OFF≧10LUX |
| Secondary lighting distribution： | PC |
| Beam Angle： | C0~180 140°/ T90~270 80° |
| Protection Grade： | IP65 |
| Photoelectric Parameter： | |
| Color Temperature(K)： | 3000-6500K |
| CRI(Ra)： | 70 |
| Lumens(lm)： | 7200-8400lm |
| Intelligent Mode: | Yes |
| Working under rainy days： | 7-10 days |
| Package： | |
| Net Weight((kg)： | 21.0kg |
| Gross Weight (kg)： | 45.0kg(2pcs/box) |
| Product Dimension (mm)： | 1355×428×62mm±5% |
| Package Dimension(mm)： | 1405×227×495mm±5% |
| Quantity in 20/40 Feet Container(Accessories) | 268/640PCS（With Pallet） |
| Environmental Temperature： | |
| Discharging Temperature (℃)： | -20～60 |
| Charging Temperature (℃)： | -20～60 |
| Storage Temperature (℃)： | 0～45 |
| Installing Parameter： | |
| Diameter of Pole： | Ø89mm |
| Screw Fixation： | Yes |
| Wind resistance level(km/h)： | 209 |
| Installation Height (m)： | 8-9 |
| Installation Distance（m)： | 24-27 |
| Irradiation Area（m2） | 243 |

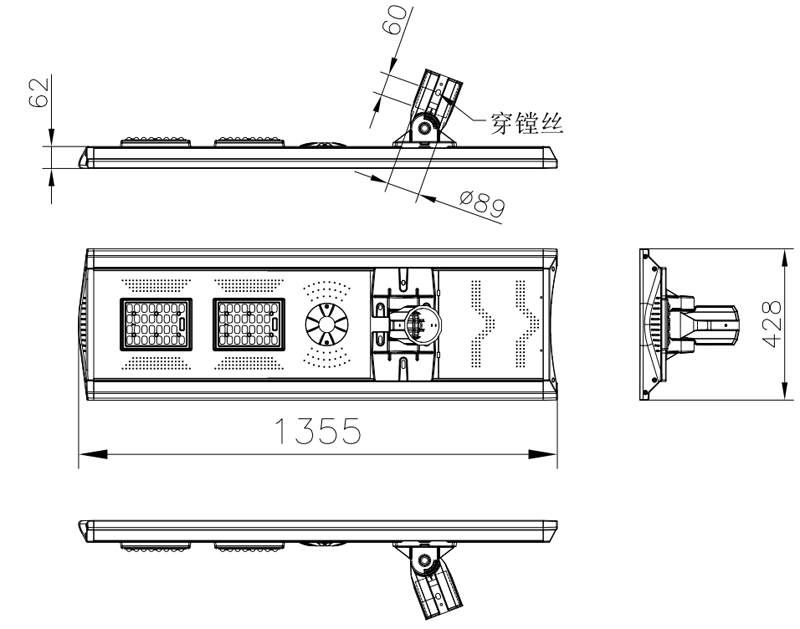

1.2 Product Dimension：（mm）

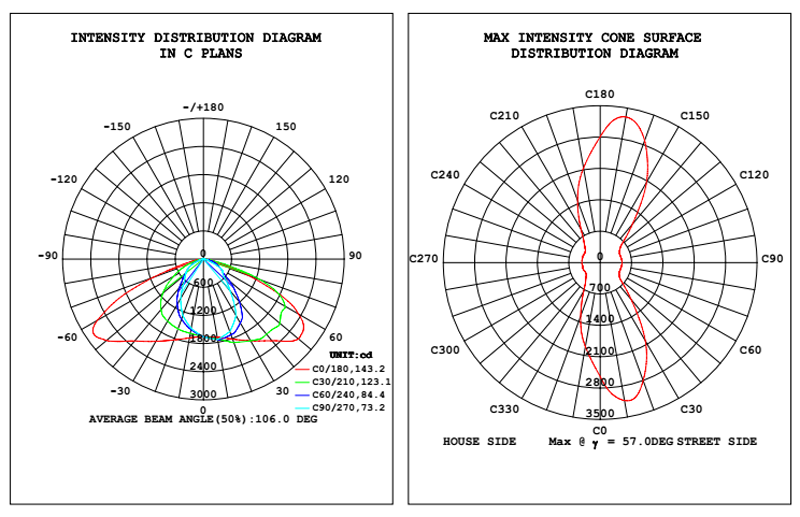

1.3 Light Distribution

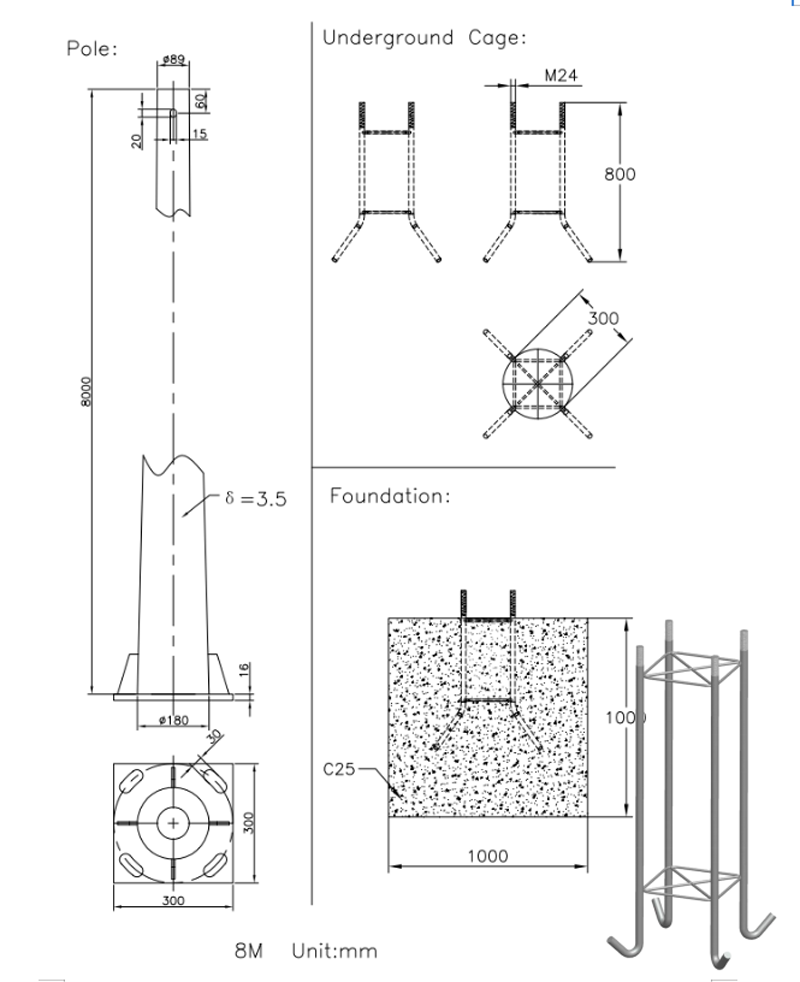

1.4 Light Pole Sketch
1.5 60W Illumination Simulation-8m
2 Package

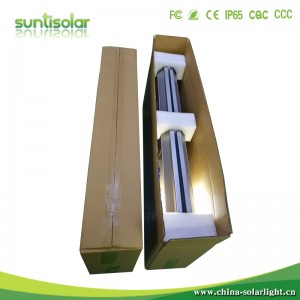

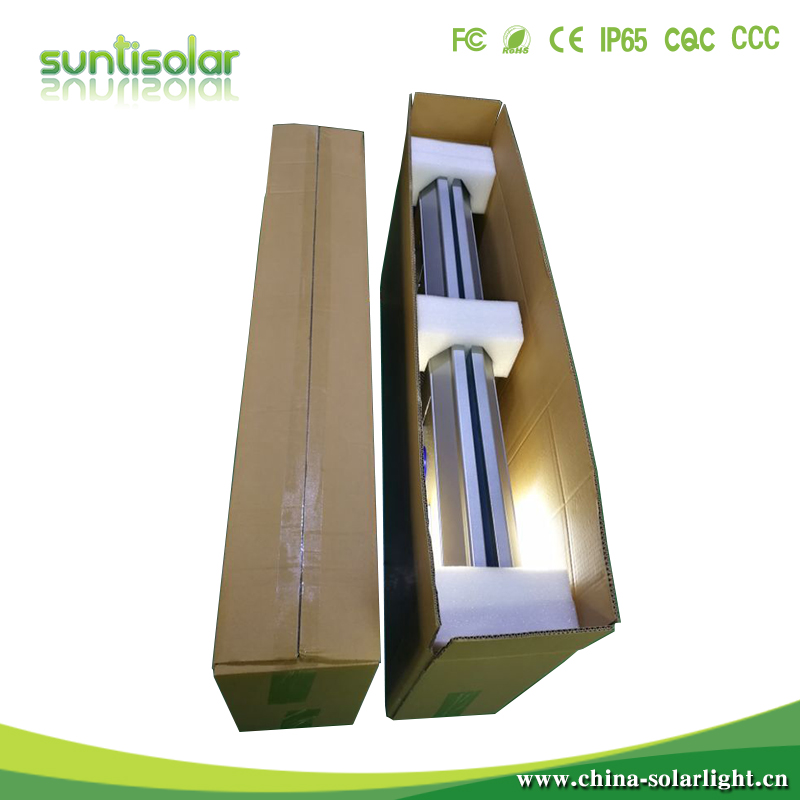

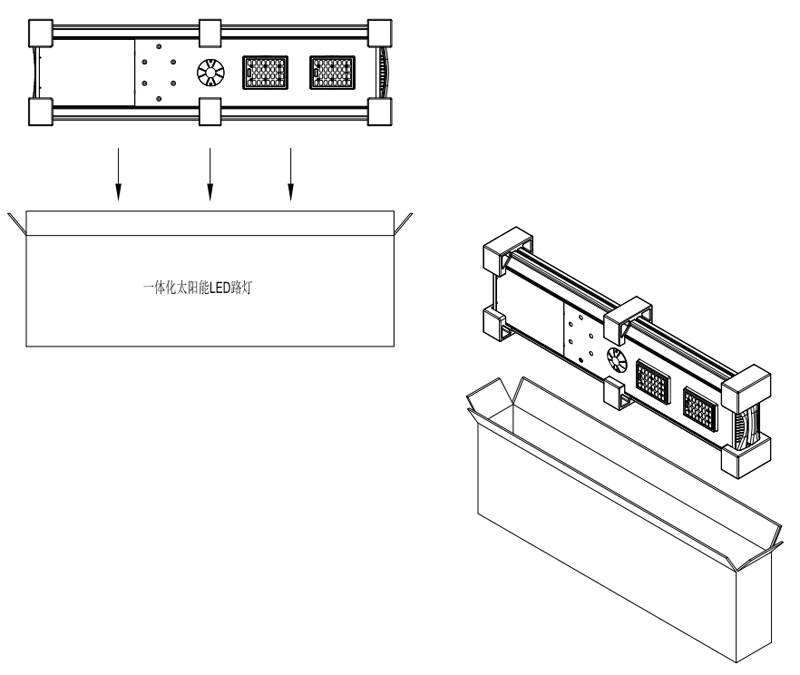

2.1 Package Sketch
2.2 Package List
|
Item |
Products |
Unit |
Quantity |
Note |
|
1 |
60W Solar Street Light |
PCS |
2 |
|
|
2 |
6mm Allen Wrench |
PCS |
1 |
2% |
|
3 |
14mm Allen Wrench |
PCS |
1 |
2% |
|
4 |
Installation Instruction |
PCS |
1 |
|
|
5 |
Certificate of Approval |
Sheet |
1 |
|
|
6 |
Test Report |
PCS |
1 |
|
2.3 Pallet Sketch
Pallet Size：1400×1100×115mm
Goods with Pallet Size：1400×1100×1150mm
Quantity：10 Boxes×2pcs/Box=20Pcs
