Z86 50W COB Specification
1.1 Product Parameter
| Model： | XT1215SELD50-J |
| LED Quantity： | 240 （2235） |
| Module Quantity (pcs)： | 2 |
| Power： | 50W |
| Solar Panel： | Monocrystalline Silicon 18V/70W |
| Battery： | Grade A Lithium Ion Battery 30Ah/12V |
| Adjustable Angle of Module(±15°)： | Yes |
| Control Mode： | Light Control+Time Control |
| Working time under full power： | 12h |
| Working time under intelligent power： | 84h |
| Charging time(1000W/m2) | 6h |
| On-off threshold level： | on≦8LUX, OFF≧10LUX |
| Secondary lighting distribution： | Borosilicate |
| Beam Angle： | C0~180 160°/ T90~270 80° |
| Protection Grade： | IP65 |
| Photoelectric Parameter： | |
| Color Temperature(K)： | 3000-6500K |
| CRI(Ra)： | 70 |
| Lumens(lm)： | 6000-7000lm |
| Intelligent Mode: | Yes |
| Working under rainy days： | 7-10 days |
| Package： | |
| Net Weight((kg)： | 18.5kg±5% |
| Gross Weight (kg)： | 39.0kg±5%(2pcs/box) |
| Product Dimension (mm)： | 1215×428×62mm±5% |
| Package Dimension(mm)： | 1265×227×495mm±5% |
| Quantity in 20/40 Feet Container(Accessories) | 286/704PCS（With Pallet） |
| Environmental Temperature： | |
| Discharging Temperature (℃)： | -20～60 |
| Charging Temperature (℃)： | -20～60 |
| Storage Temperature (℃)： | 0～45 |
| Installing Parameter： | |
| Diameter of Pole： | Ø60mm |
| Screw Fixation： | Yes |
| Wind resistance level(km/h)： | 209 |
| Installation Height (m)： | 7-8 |
| Installation Distance（m)： | 28-32 |
| Irradiation Area（m2） | 256 |

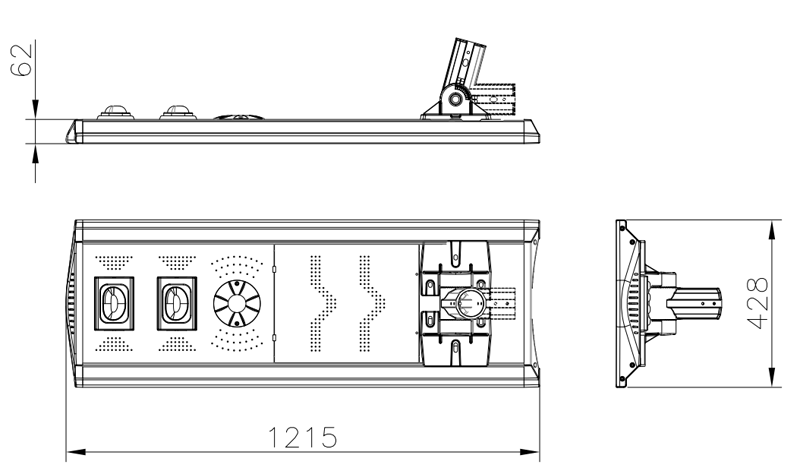

1.2 Product Dimension：（mm）

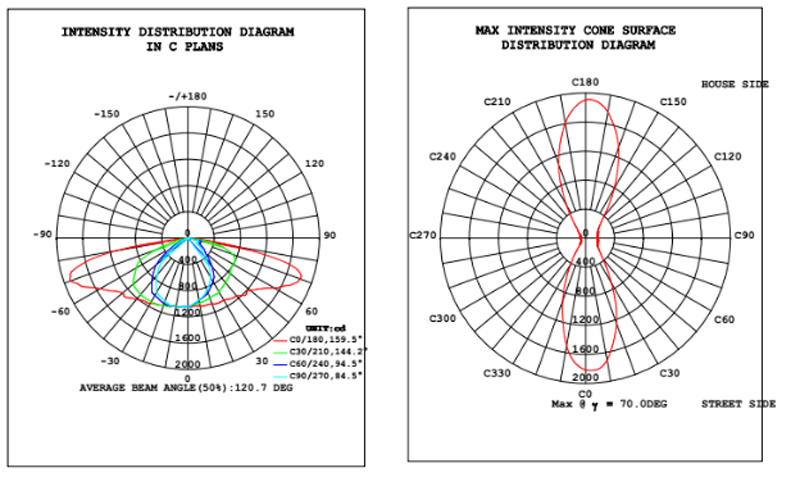

1.3 Light Distribution

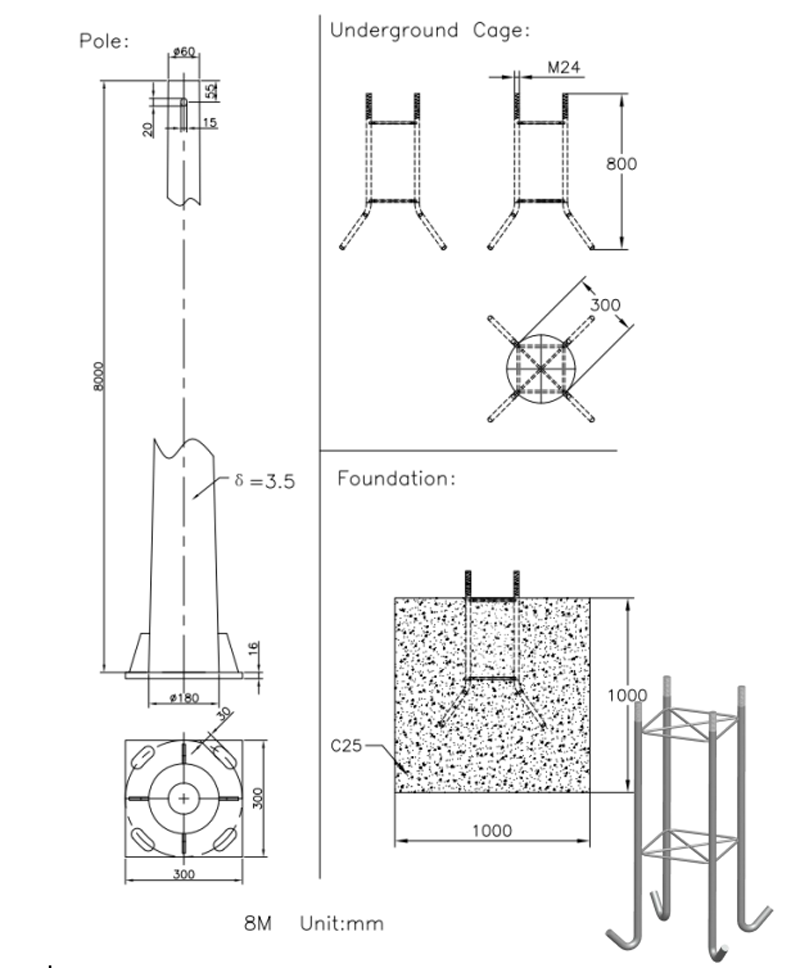

1.4 Light Pole Sketch

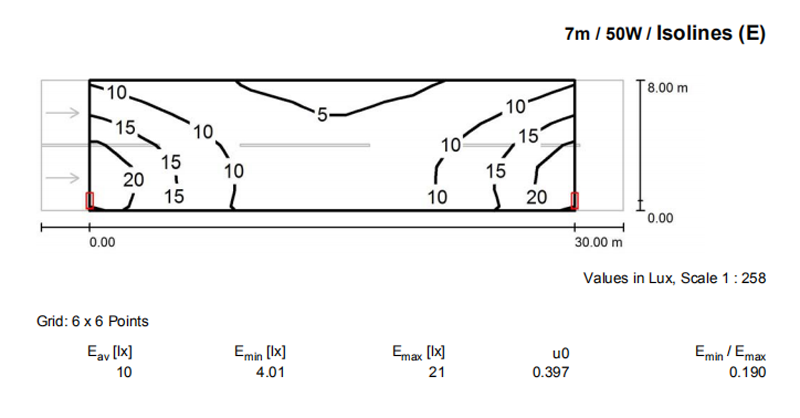

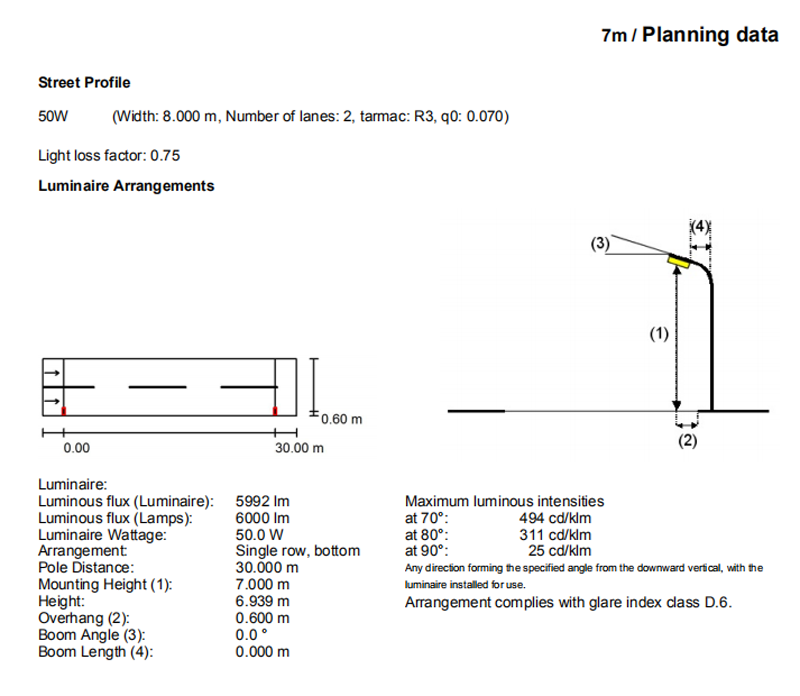

1.5 50W Illumination Simulation-7m
2 Package

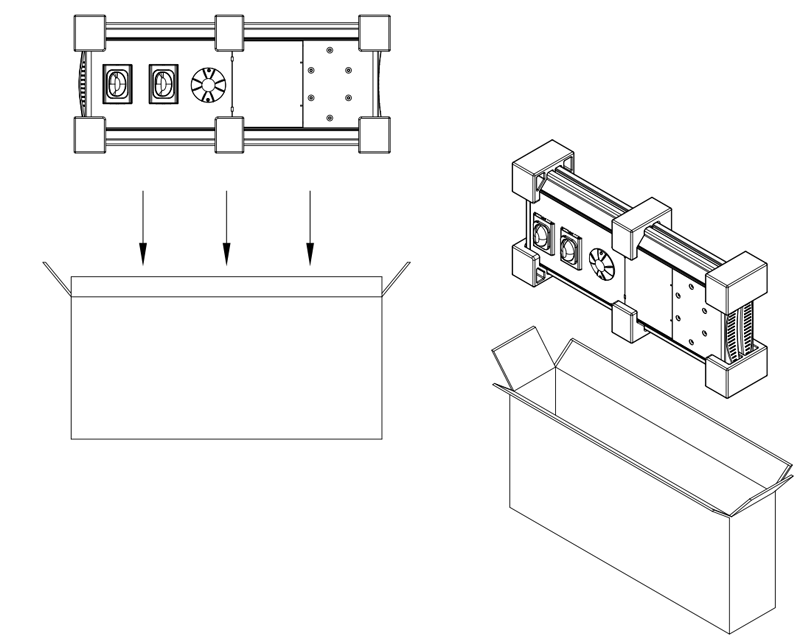

2.1 Package Sketch
2.2 Package List
|
Item |
Products |
Unit |
Quantity |
Note |
|
1 |
PCS |
2 |
|
|
|
2 |
6mm Allen Wrench |
PCS |
1 |
2% |
|
3 |
14mm Allen Wrench |
PCS |
1 |
2% |
|
4 |
Installation Instruction |
PCS |
1 |
|
|
5 |
Certificate of Approval |
Sheet |
1 |
|
|
6 |
Test Report |
PCS |
1 |
|

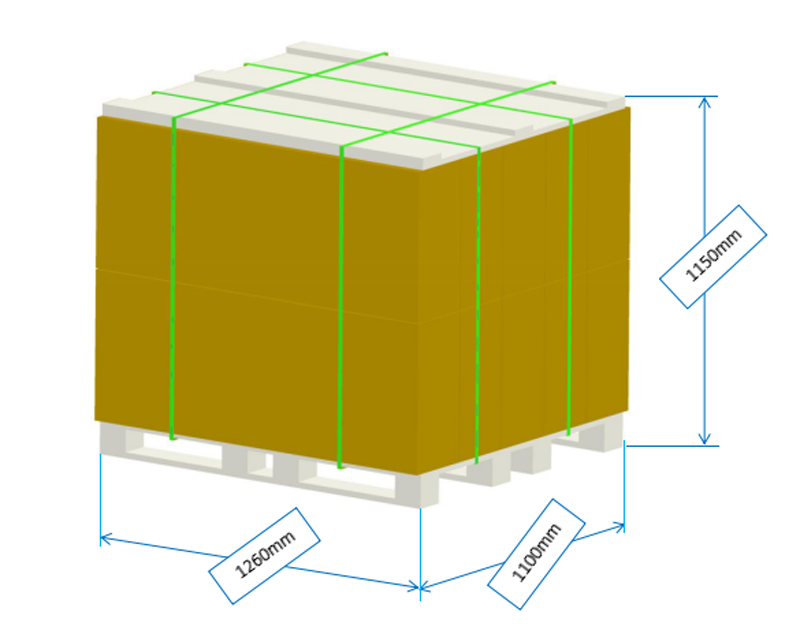

2.3 Pallet Sketch
Pallet Size：1260×1100×115mm
Goods with Pallet Size：1260×1100×1150mm
Quantity：10 Boxes×2pcs/Box=20Pcs
