Z66 40W COB Specification
1.1 Technical Parameters
| Model： | XT1190SELD40-J |
| LED Quantity： | 2 |
| Module Quantity (pcs)： | 2 |
| Power： | 40W |

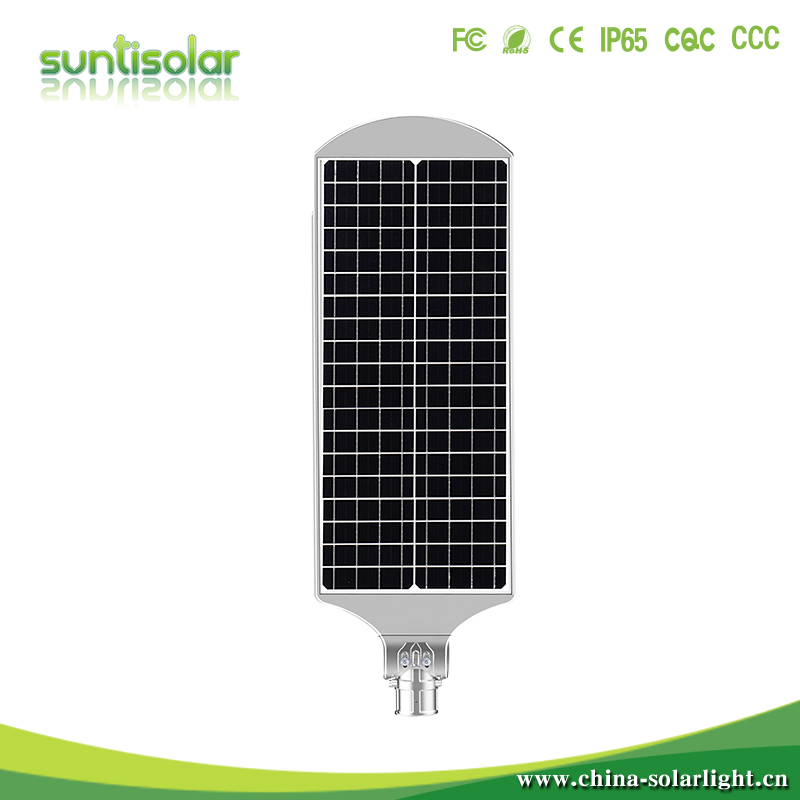

| Solar Panel： | Monocrystalline Silicon 18V/55W |

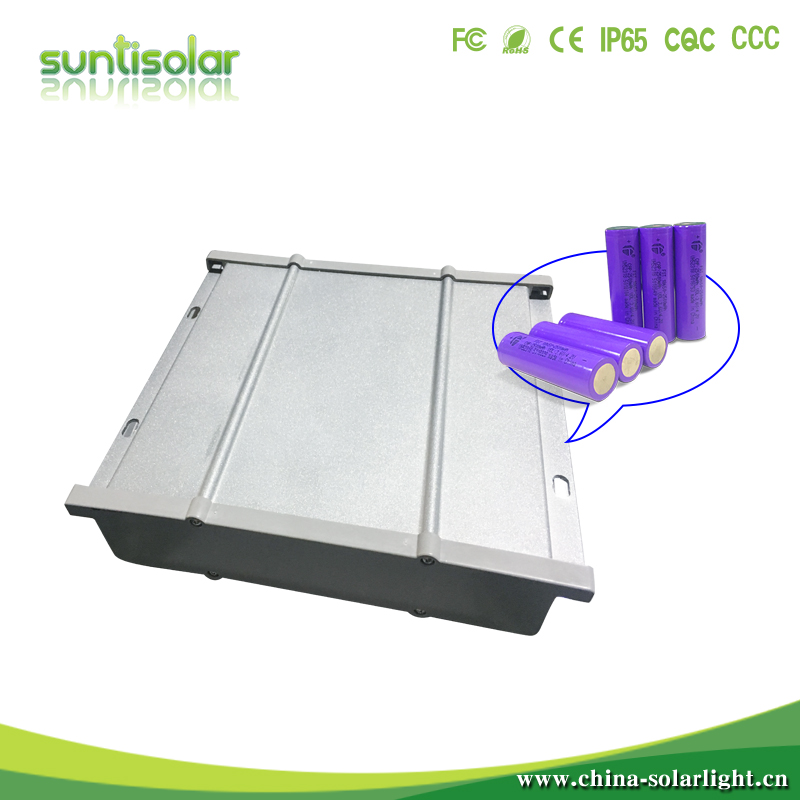

| Battery： | Grade A Lithium Ion Battery 25Ah/12V |
| Adjustable Angle of Module(±15°)： | Yes |
| Control Mode： | Light Control+Time Control |
| Working time under full power： | 12h |
| Working time under intelligent power： | 36h |
| Charging time(1000W/m2) | 6h |
| On-off threshold level： | on≦8LUX，OFF≧10LUX |
| Secondary lighting distribution： | Borosilicate |
| Beam Angle： | C0~180 160°/ T90~270 80° |
| Protection Grade： | IP65 |
| Photoelectric Parameter: | |
| Color Temperature(K): | 3000-6500K |
| CRI(Ra): | 70 |
| Lumens(lm): | 4800-5600lm |
| Intelligent Mode: | Yes |
| Working under rainy days: | 7-10 Days |
| Package: | |
| Net Weight (kg): | 11.8kg±5% |
| Gross Weight (kg): | 25.5kg±5%(2pcs/box) |
| Product Dimension (mm): | 1190×370×86mm±5% |
| Package Dimension (mm): | 1210×225×445mm±5% |
| Quantity in 20/40 Feet Container(Accessories) | 356/954PCS |
| Quantity in 20/40 Feet Container(Accessories) | 436/1044PCS |
| Environmental Temperature | |
| Discharging Temperature (℃): | -20～60 |
| Charging Temperature (℃): | -20～60 |
| Storage Temperature (℃): | 0～45 |
| Installing Parameter: | |
| Diameter of Pole: | Ø60mm |
| Screw Fixation: | Yes |
| Wind resistance level(km/h): | 209 |
| Installation Height (m): |
6-7 |
| Installation Distance(m): | 25-30 |

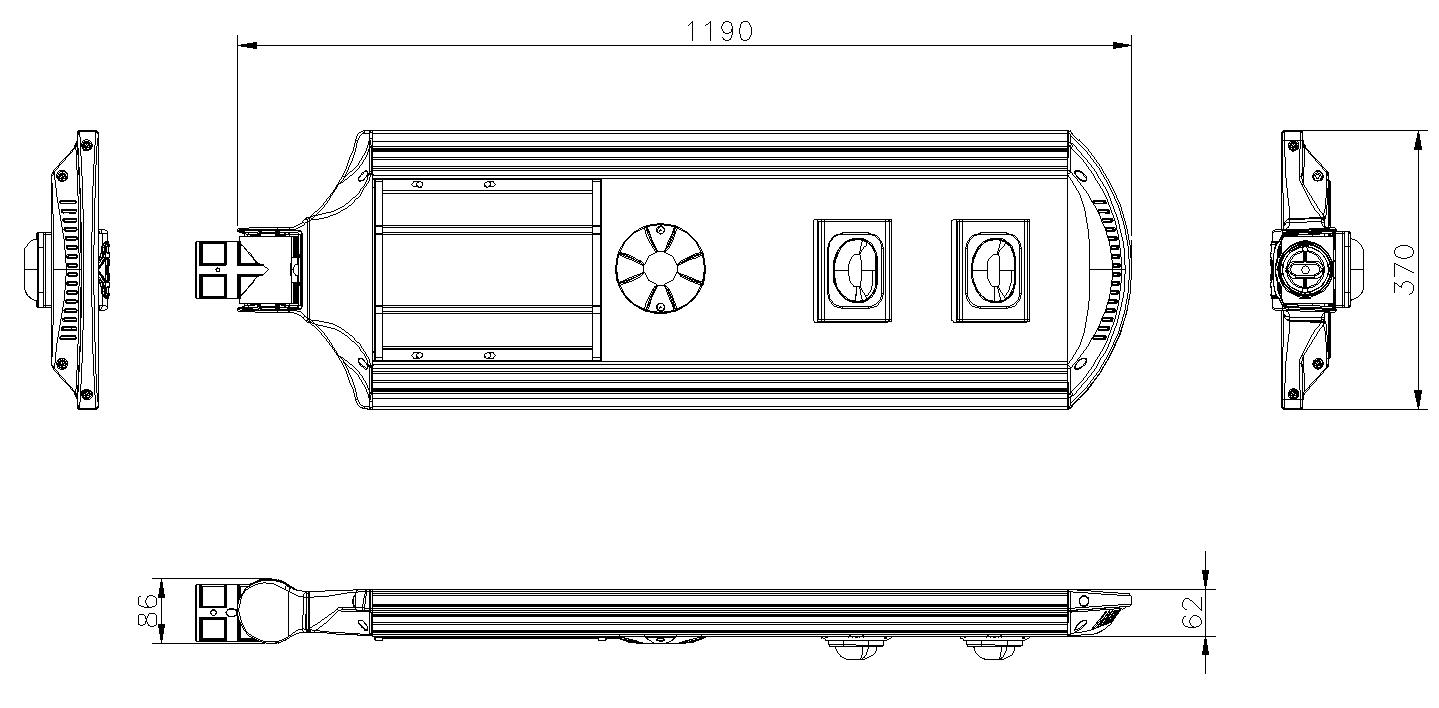

1.2 Product Dimension：（mm）

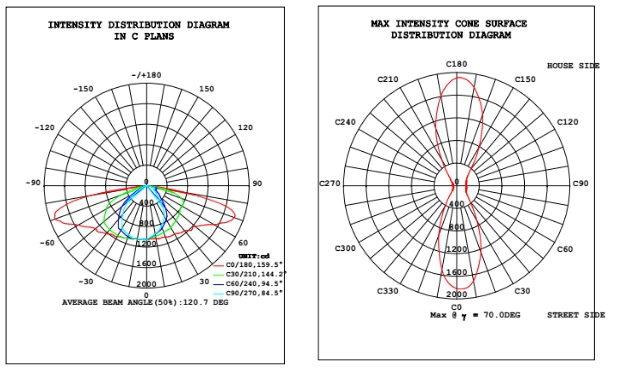

1.3 Distribution Diagram
1.4 Light Pole Sketch（5m）

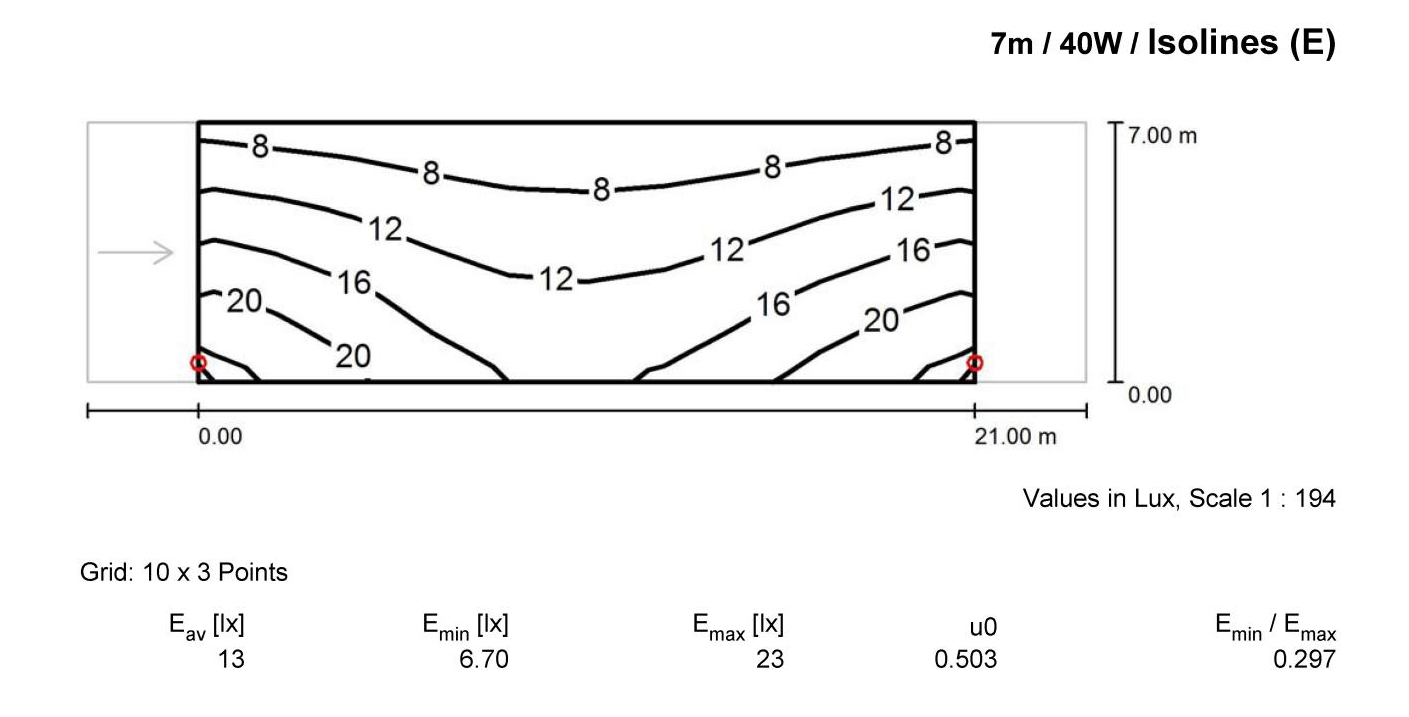

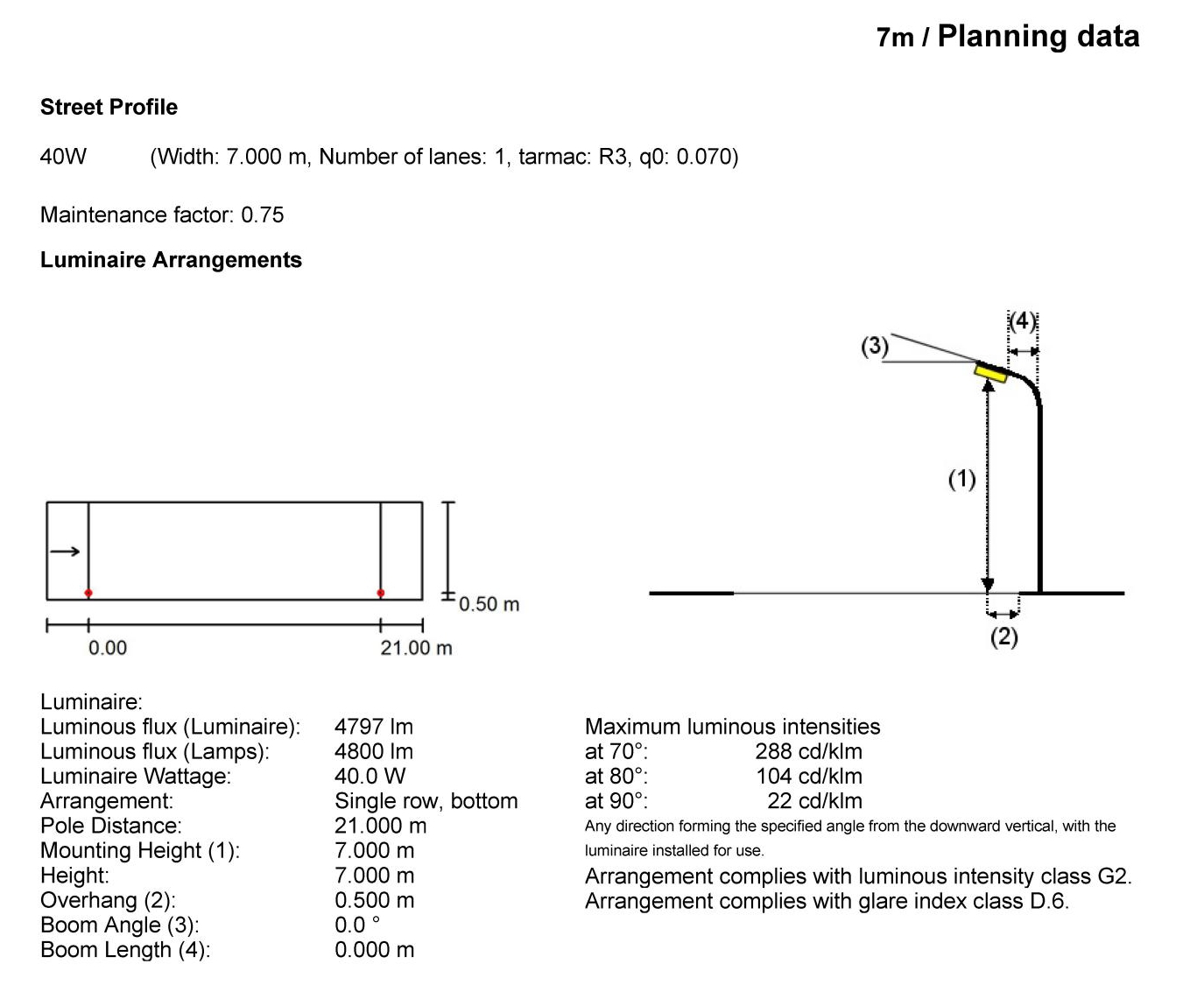

1.5 20W Illumination Simulation-7m
2 Package

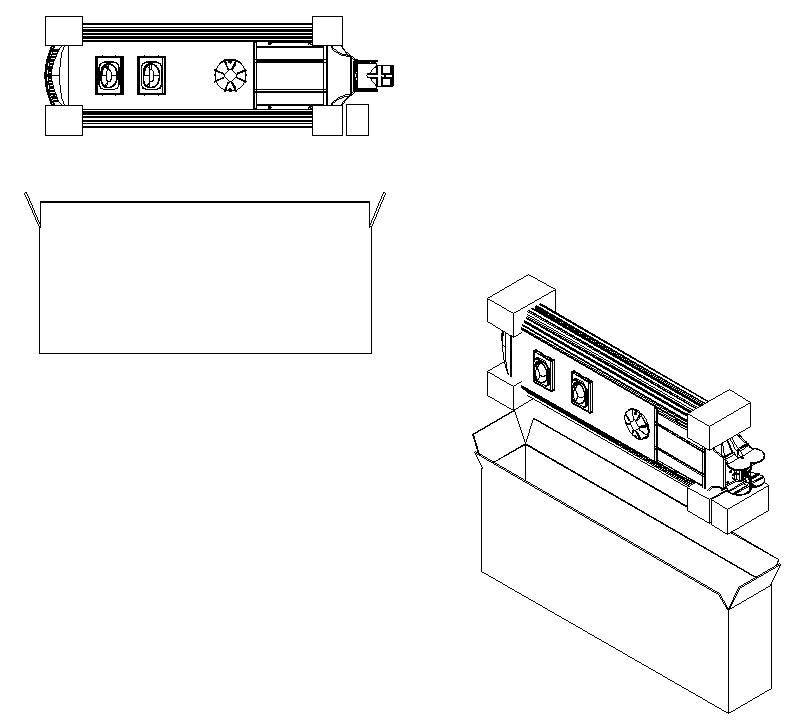

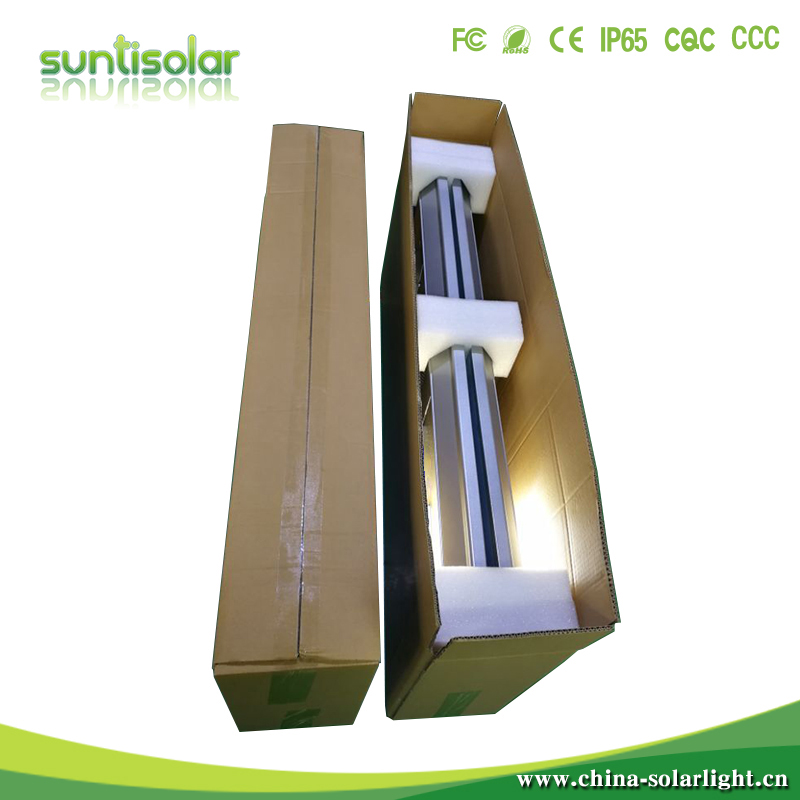

2.1 Package Sketch
2.2 Package List
|
Item |
Products |
Unit |
Quantity |
Note |
|
1 |
20W Solar Street Light |
PCS |
2 |
|
|
2 |
6mm Allen Wrench |
PCS |
1 |
2% |
|
3 |
Installation Instruction |
PCS |
1 |
|
|
4 |
Certification of Approval |
Sheet |
1 |
|
|
5 |
Test Report |
PCS |
1 |

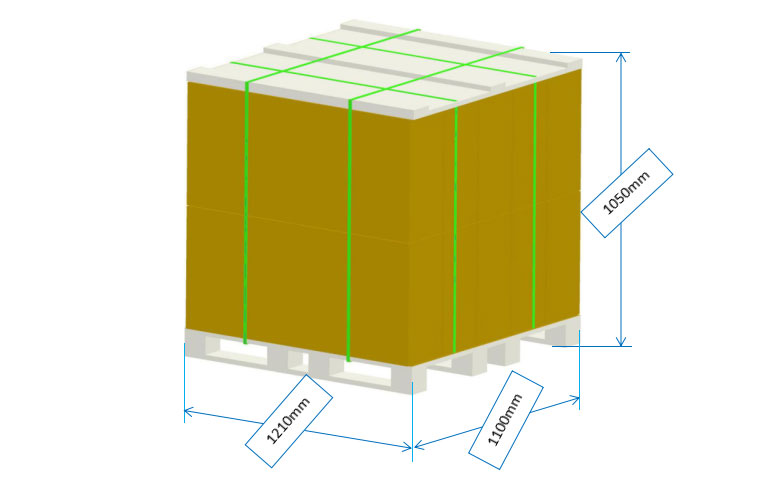

2.3 Pallet Sketch
Pallet Size：1210×1100×120mm
Goods with Pallet Size：1210×1100×1050mm
Quantity：15Boxes×2pcs/Box=30Pcs
