China Top Suppliers Solar Wall Led Light - Z88 100W SMD Specification – Suntisolar factory and manufacturers

Top Suppliers Solar Wall Led Light - Z88 100W SMD Specification – Suntisolar

Product Detail

Feedback (2)

We also supply merchandise sourcing and flight consolidation companies. We now have our very own manufacturing facility and sourcing business. We could present you with almost every kind of product relevant to our solution array for Landscape Lighting Solar, Solar Outdoor Light All In One, Solar Street Light Manufacturer, We welcome all of the clients and friends to contact us for mutual benefits. Hope to do further business with you.

Top Suppliers Solar Wall Led Light - Z88 100W SMD Specification – Suntisolar Detail:

1.1 Technical Parameters

Model	XT1540SELD100-D5
LED Quantity	40 PCS 5050
Module Quantity (pcs)	2
Power	100W
Solar Panel	Monocrystalline Silicon of 36V/120W

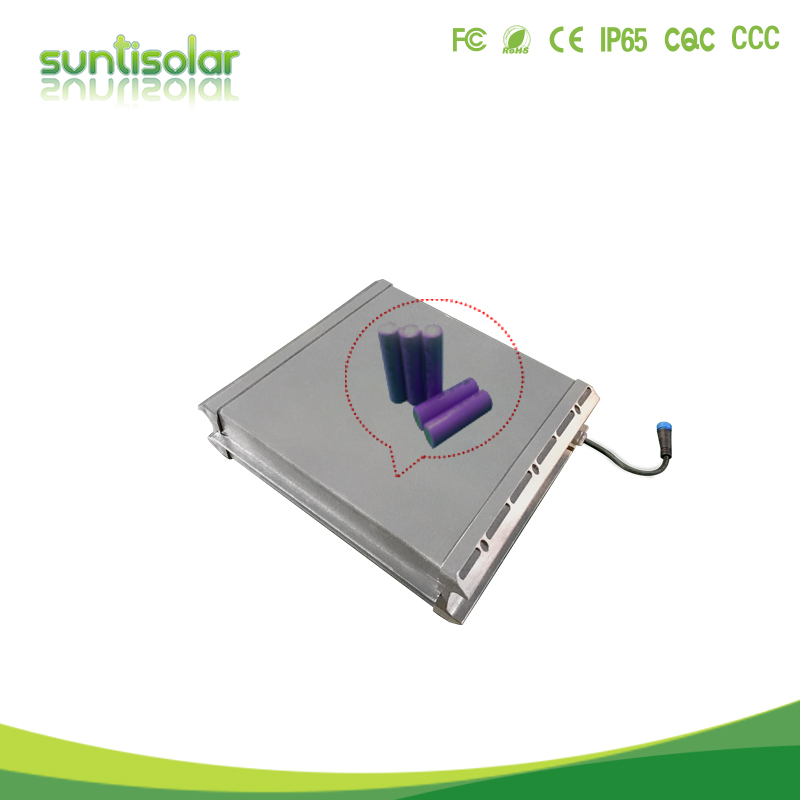

Battery	Grade A Lithium Ion Battery of model 32650 30Ah/24V
Adjustable Angle of Module (±15°)	Yes
Contrtol Mode	Light Control+Time Control
Working time under full power	12h
Working time under smart power control	84h
Charging time (1,000W/m2)	6h
On-off threshold level	on≦8LUX, OFF≧10LUX
Material for secondary lighting distribution	PC
Beam Angle	C0~180 150°/ T90~270 80°
Protection Grade	IP65
Photoelectric Parameter
Color Temperature (K)	3,000-6,500K
CRI (Ra)	70
Lumens (lm)	10,000-11,000lm
Intelligent Mode	Yes
Working under rainy days	7 to 10 days
Package
Net Weight	28.5kg±5%
Gross Weight	59.5kg±5%(2pcs/box)
Product Dimension	1,54052586mm±5%
Package Dimension	1,550260580mm±5%
Quantity in 20/40 Feet Container	162PCS/414PCS
Environmental Temperature
Discharging Temperature	-20～60
Charging Temperature	-20～60
Storage Temperature	0～45
Installation
Diameter of Pole	Ø89mm
Screw Fixation	YES
Wind resistance level(km/h)	209
Installation Height (m)	9-10
Installation Distance(m)	27-30
Irradiation Area(m2):	300

1.2 Product Dimension (mm)

1.3 Distribution Diagram

1.4 Light Pole Sketch

微信图片_20190401093427
1.5 100W Illumination Simulation-10m

微信图片_20190401093448

2 Package
2.1 Package Sketch

2.2 Package List

Item	Products	Unit	Quantity	Note
1	100W Solar Street Light	PCS	2
2	6mm Allen Wrench	PCS	1	2%
3	14mm Allen Wrench	PCS	1	2%
4	Installation Instruction	PCS	1
5	Certificate of Approval	Sheet	1
6	Test Report	PCS	1

2.3 Pallet Sketch
Pallet Size: 1,550×1,100×115mm
Goods with Pallet Size: 1,550×1,100×1,280mm
Quantity: 8 Boxes×2pcs/Box=16 Pcs

微信图片_20190401093513

Product detail pictures:

Related Product Guide:
Exotic Crystal Points To Better Solar Cells | Integrated Solar Street Light 30w
Environmental Sensors Enter Energy Sector | Integrated Solar Street Light 30w

We are commitment to offer you the aggressive price tag ,exceptional products and solutions high-quality, as well as fast delivery for Top Suppliers Solar Wall Led Light - Z88 100W SMD Specification – Suntisolar , The product will supply to all over the world, such as: Hamburg, Pakistan, Kenya, They are sturdy modeling and promoting effectively all over the world. Never ever disappearing major functions within a quick time, it's a have to for you of fantastic good quality. Guided by the principle of Prudence, Efficiency, Union and Innovation. the corporation. ake an excellent efforts to expand its international trade, raise its organization. rofit and raise its export scale. We are confident that we have been going to have a bright prospect and to be distributed all over the world in the years to come.

Compound Solar Light

Led Compound Solar Street Lights

Security Solar Lights

Solar Light Lithium Battery

Solar Wall Light

Wall Solar Light

In China, we have purchased many times, this time is the most successful and most satisfactory, a sincere and realiable Chinese manufacturer!

By Daniel Coppin from Philadelphia - 2018.10.01 14:14

The sales manager is very patient, we communicated about three days before we decided to cooperate, finally, we are very satisfied with this cooperation!

By Marco from South Africa - 2018.09.29 13:24
