Z66 30W Specification SMD
1.1 tapulaa Technical
| faataitaiga: | XT1050SELD30-D5 |
| Aotelega TAITAIINA: | 10 PCS 5050 |
| Module Aotelega (pcs): | 3 |
| Mana (W): | 30W |
| Vaega le la (Wp): | Monocrystalline Silicon 18V / 45W |
| Maa (Ah): | Togi se maa Lithium Ion 20Ah / 12V |
| Ma faʻafetauina tulimanu o Module (± 15 °): | ioe |
| Pulea Faiga: | Malamalama Pulea + Pulea Taimi |
| Galulue taimi i lalo o le mana atoa (h): | 12h |
| Galulue taimi i lalo o le mana atamai (h): | 36h |
| Molia taimi (1000W / m 2) | 6h |
| I-ese tulaga faitotoa (LUX): | i ≦ 8LUX, ESE ≧ 10LUX |
| tufatufaina moli lona lua: | PC |
| Tulimanu utupoto (°): | C0 ~ 180 140 ° / T90 ~ 270 70 ° |
| Puipuiga Vasega: | IP65 |
|
Parameter Photoelectric : |
|
| Vevela lanu (K): | 3000-6500K |
| CRI (ra): | 70 |
| Lumens (lm): | 3200-4200lm |
| Faiga atamai: | ioe |
| Galulue i lalo o aso timuga: | 365 aso |
| afifi: | |
| Upega Weight (kg): | 10.0kg ± 5% |
| Gross Weight (kg): | ± 5% 21.5kg (2pcs / pusa) |
| Oloa itu (mm): | 1050 × 370 × 86mm ± 5% |
| Pusa itu (mm): | 1070 × 225 × 445mm ± 5% |
| Aotelega i 20/40 Vae fagu: (Pallet) | 400 / 1100PCS |
| Aotelega i 20/40 Vae fagu: (Leai se Pallet) | 500 / 1210PCS |
| Vevela o le siosiomaga: | |
| Faatinoina vevela (℃): | -20 ~ 60 |
| Molia vevela (℃): | -20 ~ 60 |
| Vevela teuina (℃): | 0 ~ 45 |
| Faʻapipiʻiina Parameter : | |
| Lapoa o Pole (mm): | Ø60mm |
| Faovilivili Fixation: | ioe |
| Matagi tulaga tetee (km / h): | 209 |
| Faapipiiina maualuga (m): | 5-6 |
| Faapipiiina Mamao (m): | 15-20 |
| Irradiation Eria (m 2): | 120 |

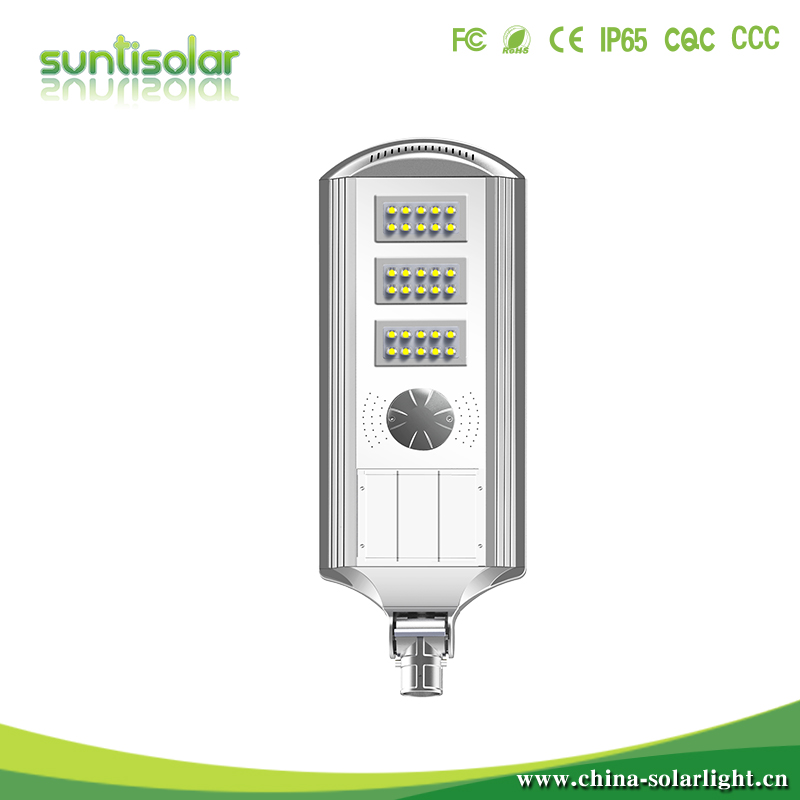

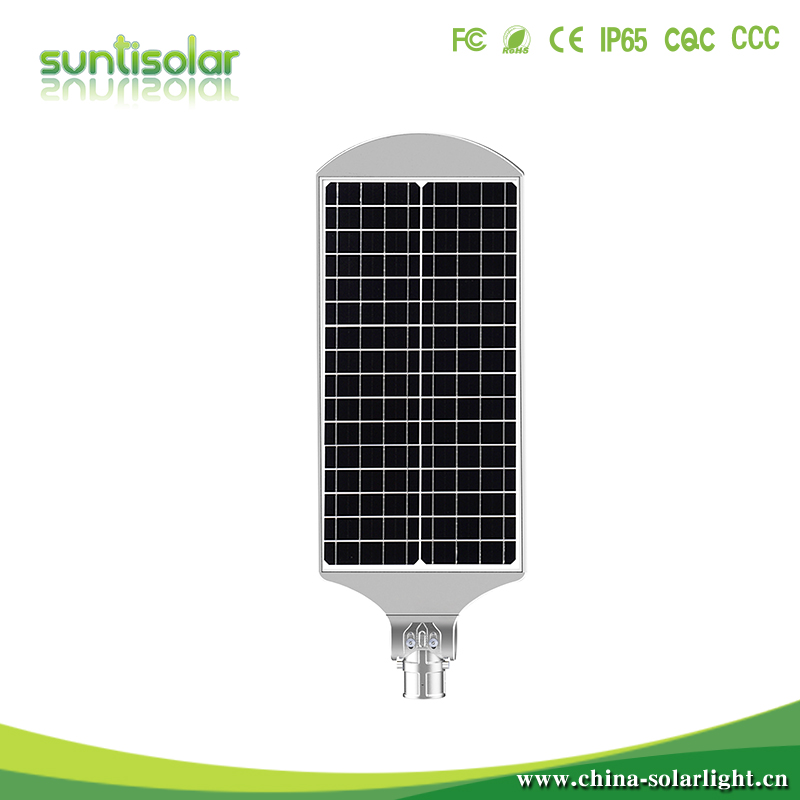

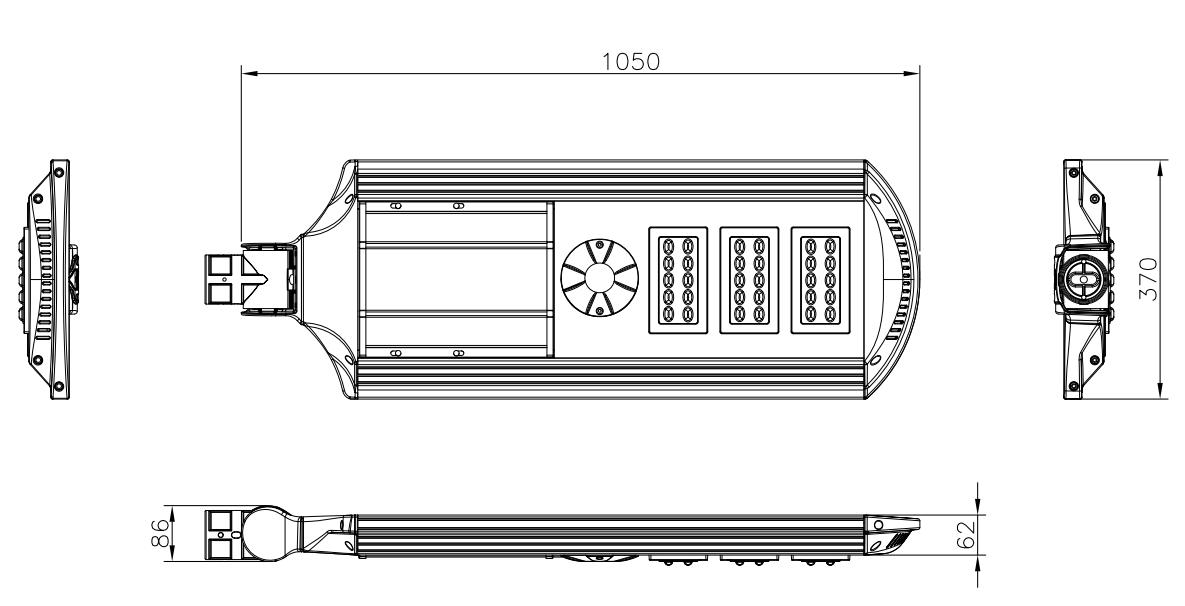

1.2 Oloa itu: (mm)

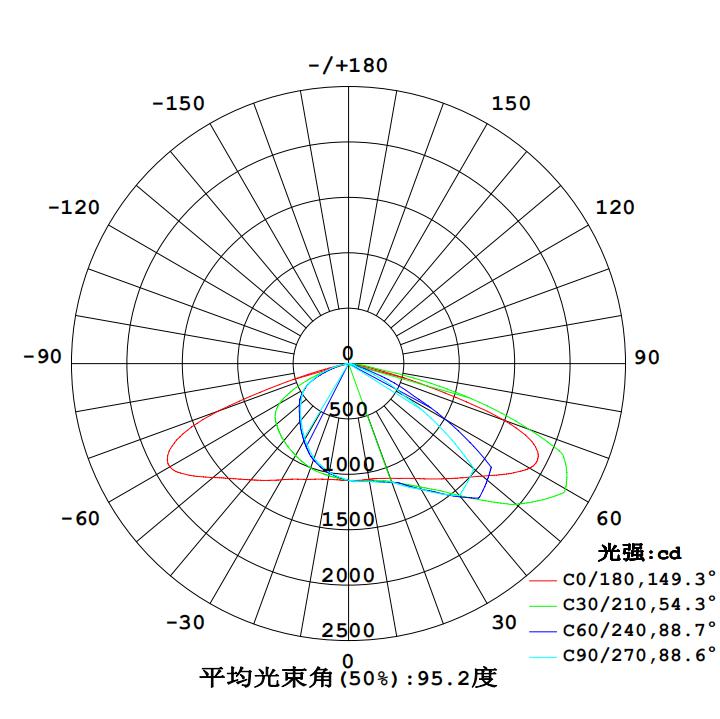

1.3 Faletusi Ata

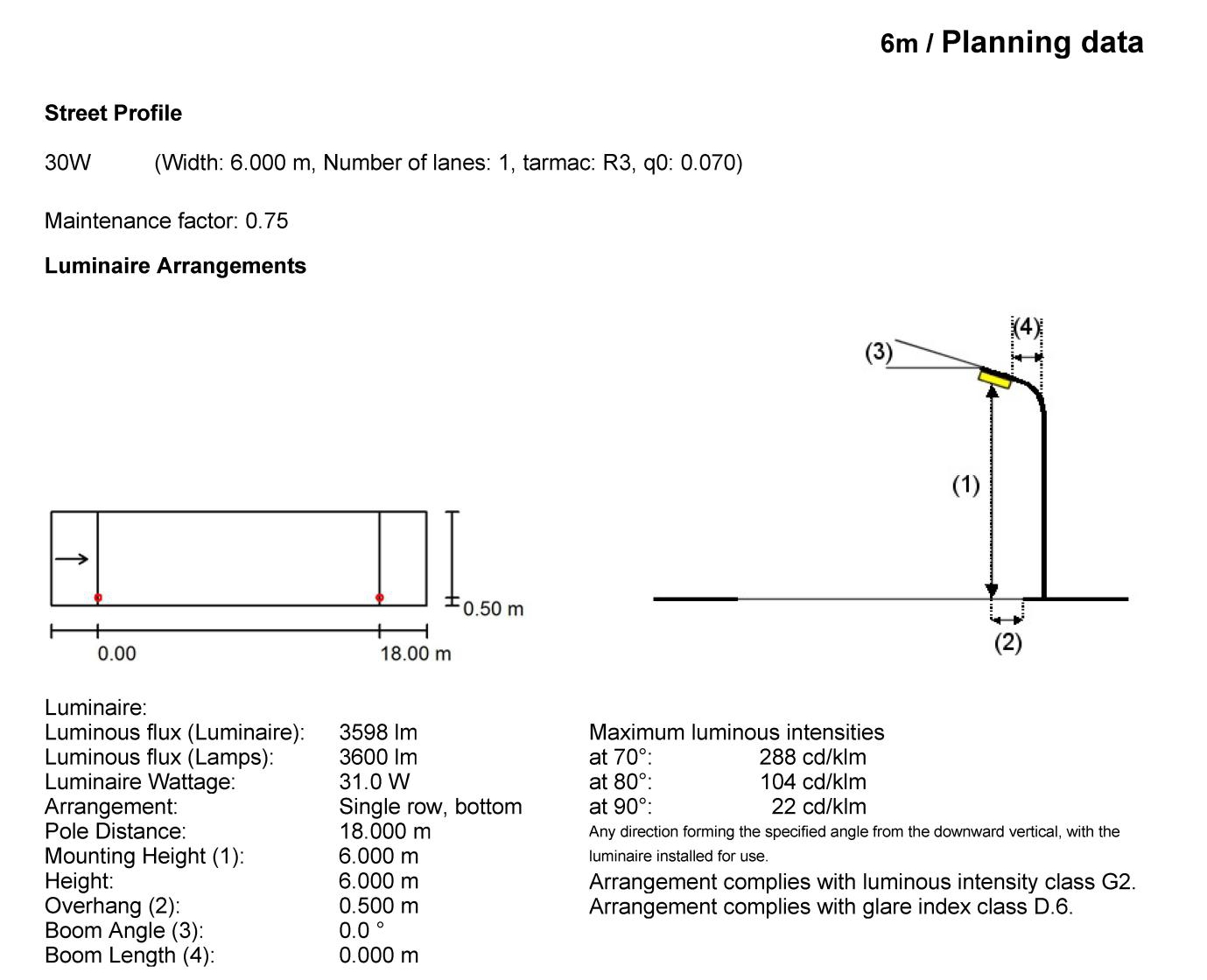

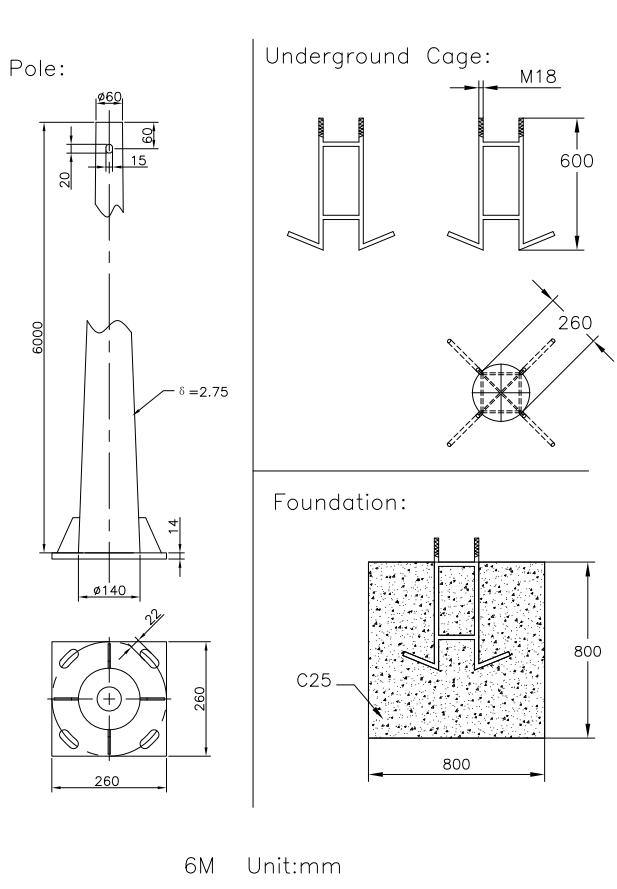

1.4 Ata Malamalama Pole (5m)

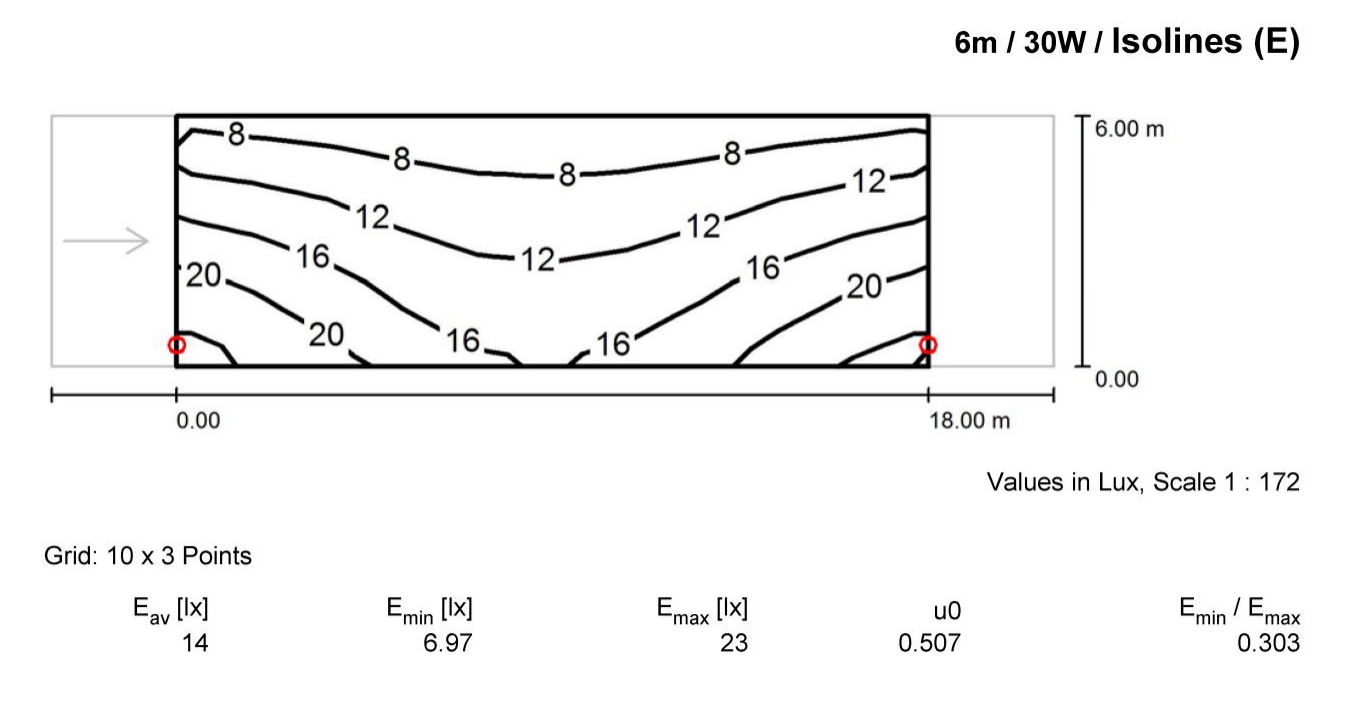

1.5 30W malamalama faatupu-6m
2 afifi

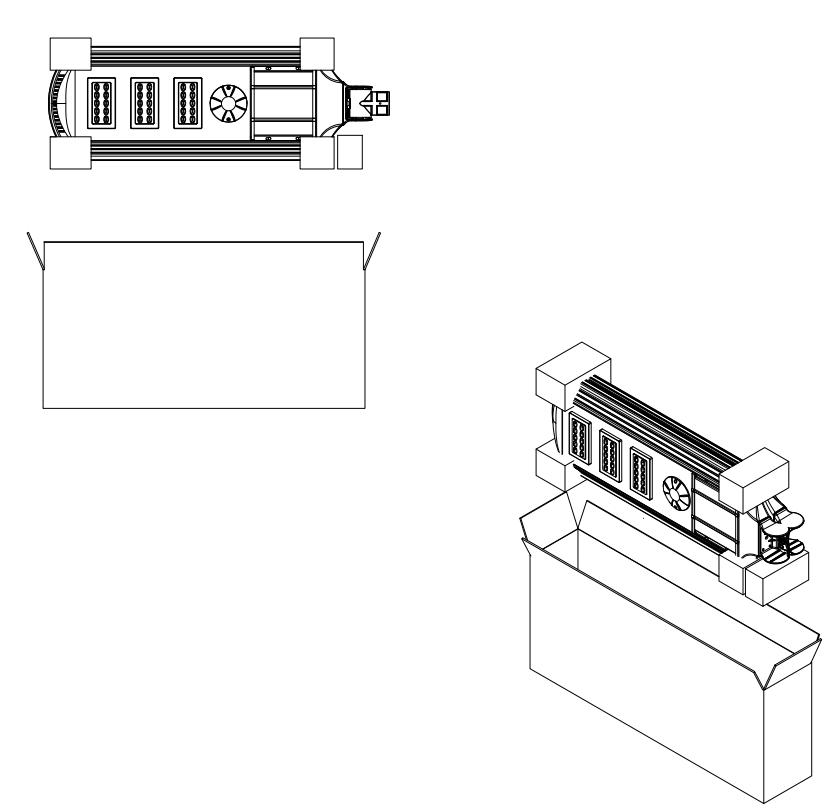

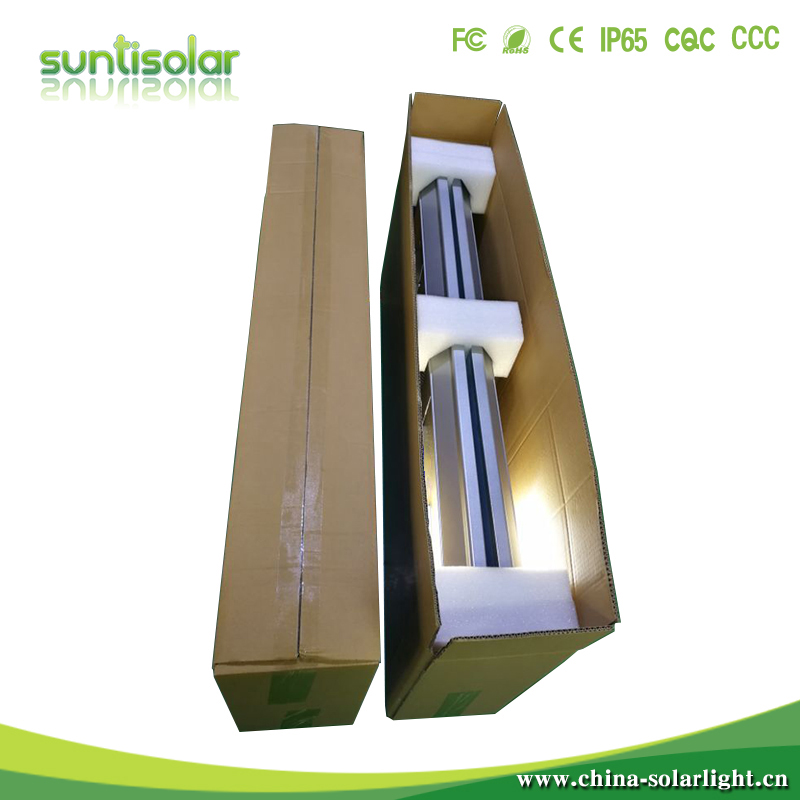

2.1 afifi Ata
2.2 afifi Lisi
|
mea |
Products |
Vaega |
mea |
tusi |
|
1 |
30W Malamalama Street la |
PCS |
1 |
|
|
2 |
6mm seʻega Allen |
PCS |
2 |
2% |
|
3 |
Faatonuga faapipiiina |
PCS |
3 |
|
|
4 |
Tusi Faamaonia o Faamaoniga |
laupepa |
4 |
|
|
5 |
Report tofotofoga |
PCS |
5 |
2.3 Ata Pallet
tele Pallet: 945 × 1100 × 120mm
Oloa ma tele Pallet: 945 × 1100 × 1050mm
Aotelega: 10Boxes × 2pcs / Box = 20pcs
