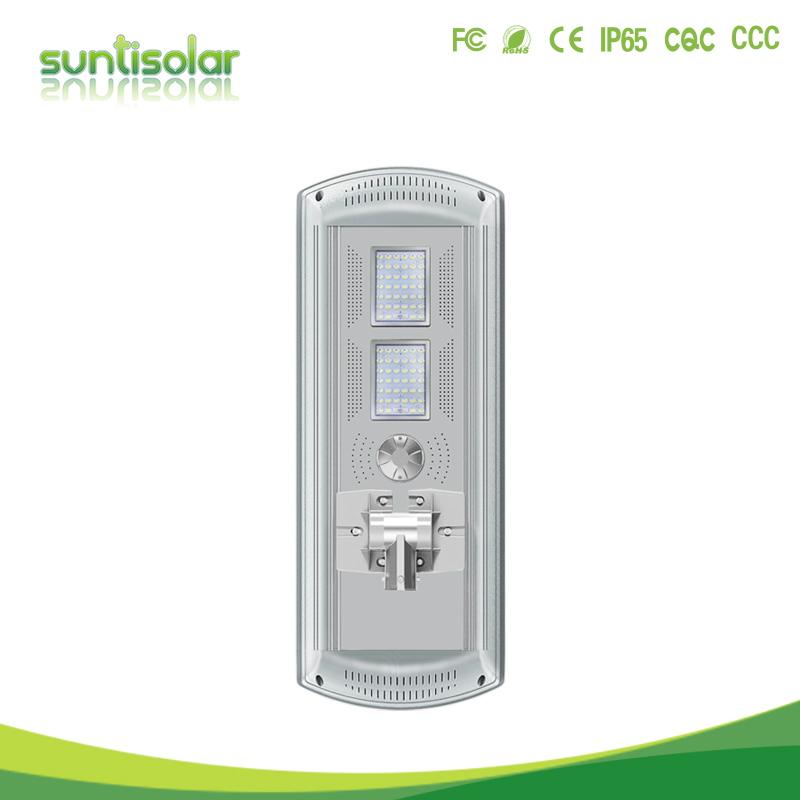

Z88 80W SMD hoakaka
1.1 Kōmike kiko'î
| Hoʻohālike | XT1340SELD80-D5 |
| alakai nui | 40 PCS 5050 |
| Module nui (pcs) | 2 |
| mana | 80W |

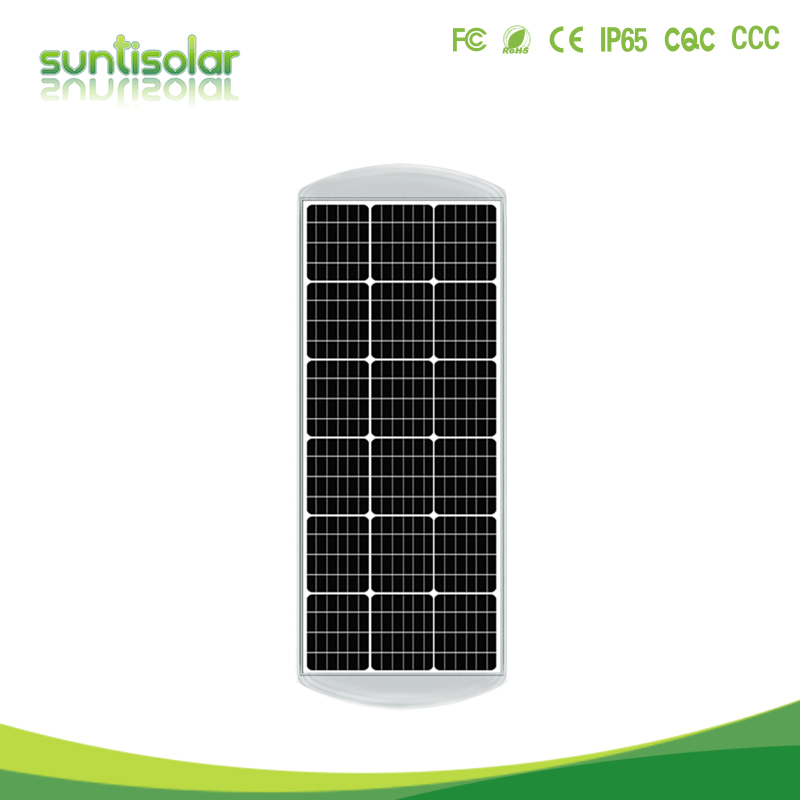

| ka ikehu lā Panel | Monocrystalline silikone o 36V / 100W |

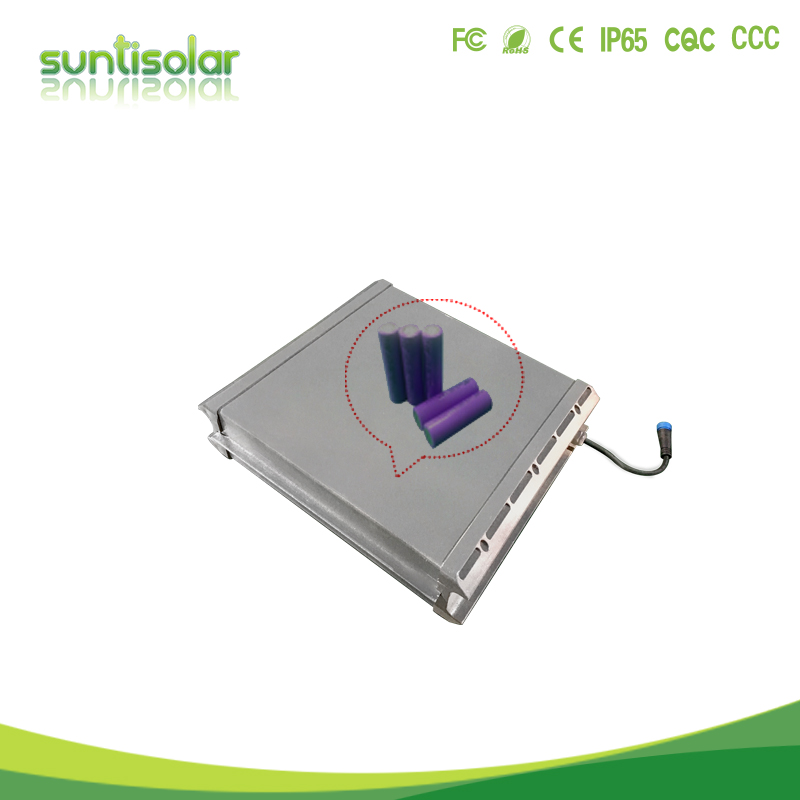

| o na pu ki | Grade A likiuma Ion o na pu ki o ka kükohu 32650 25Ah / 24V |
| Hoʻoneʻe huina o Module (± 15 °) | Ae |
| Contrtol? aaeei | Light Na Makuahine + Time Na Makuahine |
| E hana ana i manawa ma lalo o ka mana piha | 12h |
| E hana ana i manawa ma lalo o akamai mana e hooponopono | 84h |
| Kauoha aku la i manawa (1,000W / m2) | 6 |
| Ma-aku paepae pae | ma ≦ 8LUX, aku ≧ 10LUX |
| Material no ka haumāna kau iho hoi o ka makana | PC |

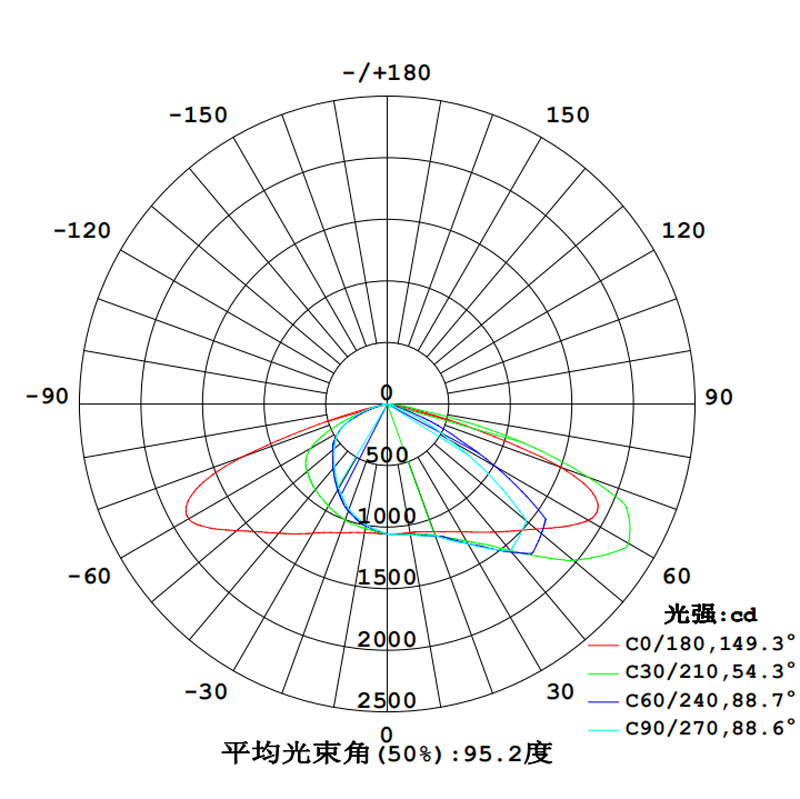

| mea ulana lole huina | C0 ~ 180 150 ° / T90 ~ 270 80 ° |
| hoomalu ana Grade | IP65 |
| Photoelectric aiao | |
| Waihoʻoluʻu Mahana (K) | 3,000-6,500K |
| CRI (RA) | 70 |
| Lumens (lm) | 9,000-10,000 lm |
| akamai? aaeei | Ae |
| Hana ma lalo o ke anuenue lā | 7 i 10 mau lā |
| makua | |
| upena Weight | 23kg ± 5% |
| loa Weight | 48kg ± 5% (2pcs / pahu) |
| Product Ana | 1,340 * 525 * 86mm ± 5% |
| hala Ana | 1,360 * 260 * 580mm ± 5% |
| Mea i loko o 20/40 kapuai ipu (me accessories) | 192PCS / 448 pcs |
| ? Aneie Mahana | |
| hookuu Mahana | -20 ~ 60 |
| kauoha aku la i Mahana | -20 ~ 60 |
| waho pūnaewele Mahana | 0 ~ 45 |
| mea hoʻonoho | |
| Anawaena o Pole | Ø89mm |
| hoʻohewa Fixation | AE |
| Wind ia'ku 'ilikai (km / h) | 209 |
| Mea hoʻonoho kiʻekiʻe (m) | 9-10 |
| Mea hoʻonoho Distance (m) | 27-30 |
| Irradiation Area (m2): | 300 |

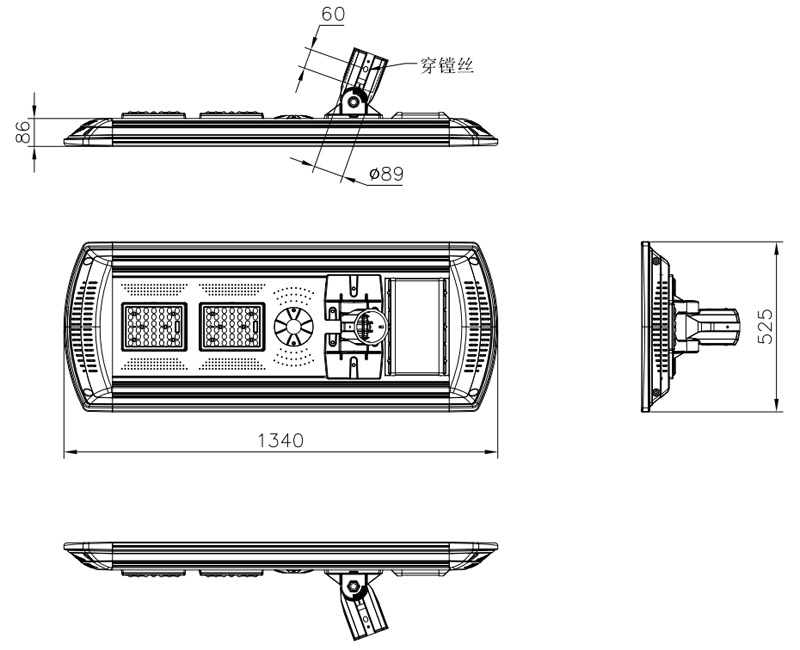

1.2 Ana huahana (mm)
1.3 Kuhi Hoʻolaha

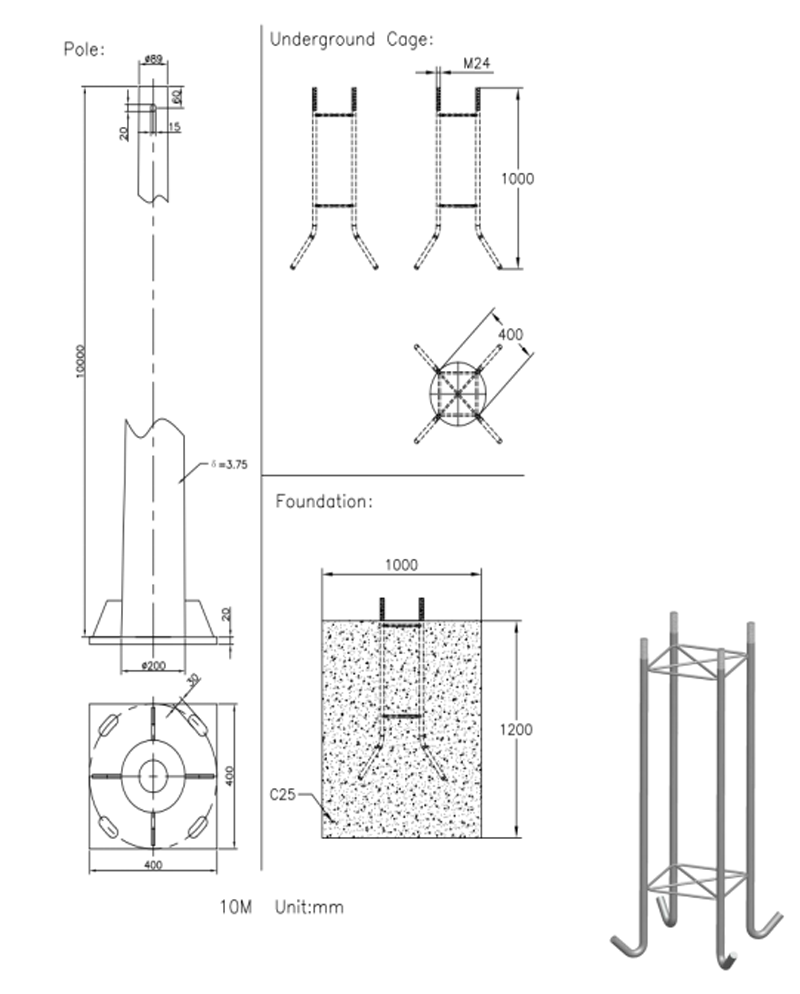

1.4 Sketch Pole Maʻalahi

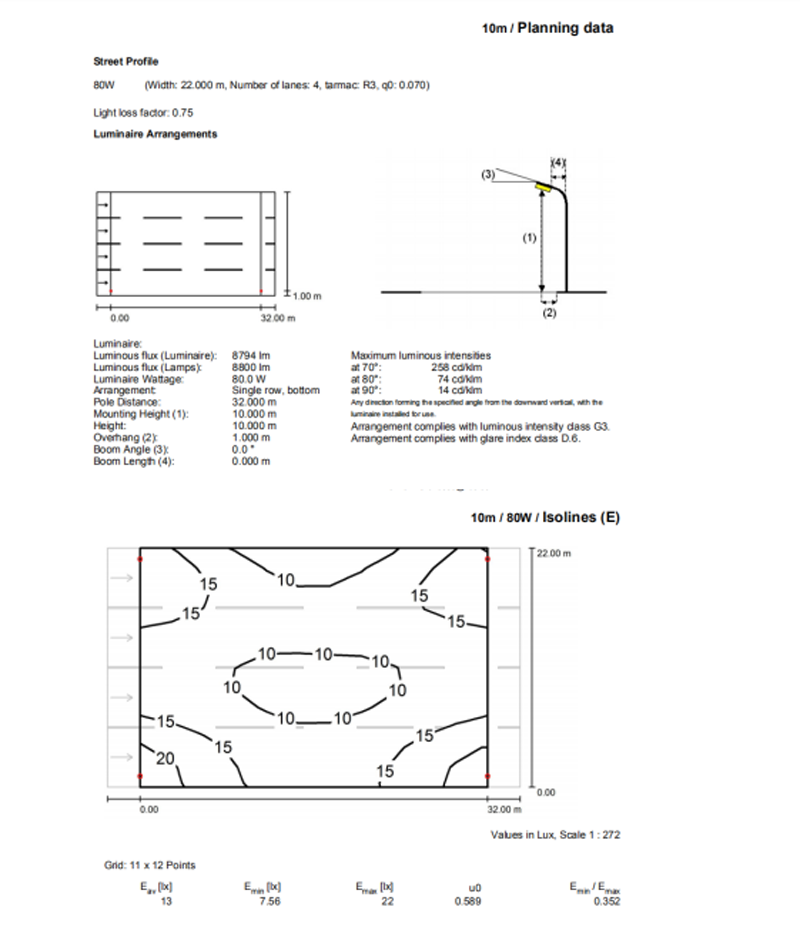

1.5 80W Hoʻohālikelike Hoʻohālikelike-10m
2 makua

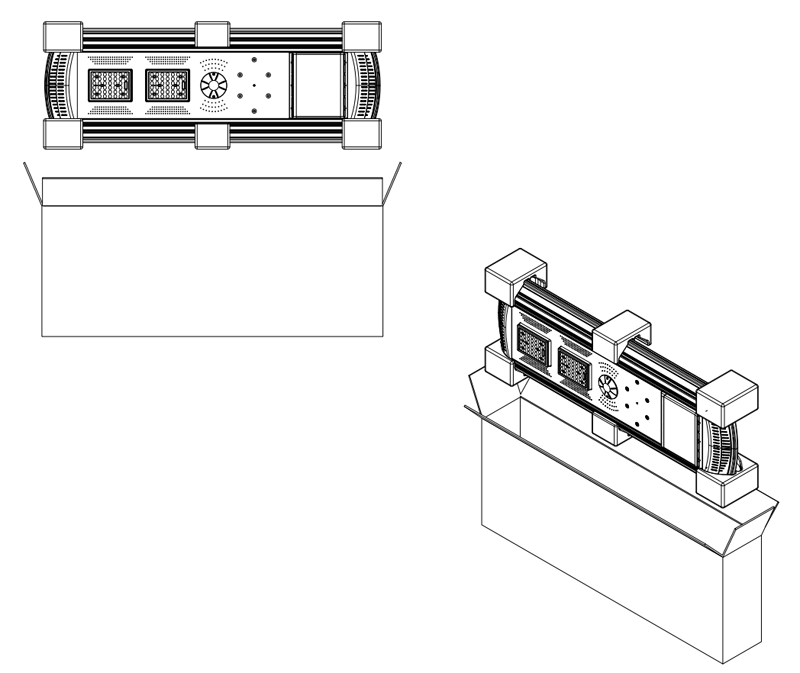

2.1 hala Sketch
2.2 hala List
|
'ikamu |
Nā huahana |
ʻĀpana |
mea |
'Ōlelo Aʻo |
|
1 |
80W ka ikehu lā Street Light |
pcs |
2 |
|
|
2 |
6mm ʻO Allen Wrench |
pcs |
1 |
2% |
|
3 |
14mm ʻO Allen Wrench |
pcs |
1 |
2% |
|
4 |
mea hoʻonoho Instruction |
pcs |
1 |
|
|
5 |
Palapala o ka apono |
Haumana |
1 |
|
|
6 |
hoʻokolohua Report |
pcs |
1 |
|

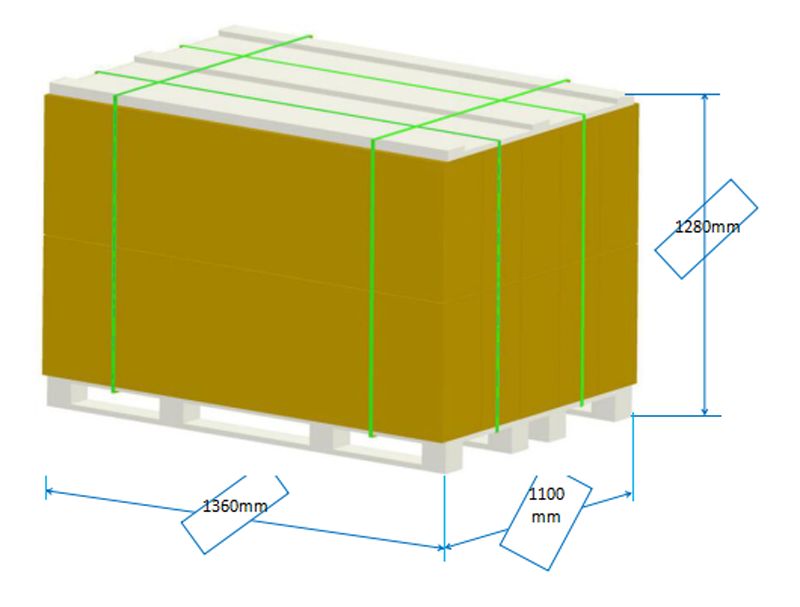

2.3 Pallet Sketch
Pallet Size: 1.360 × 1.100 × 115mm
Waiwai me ka Pallet Size: 1.360 × 1.100 × 1,280mm
Mea: 8 pahu × 2pcs / Box = 16 pcs
