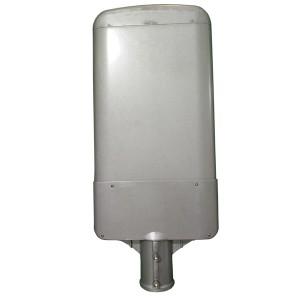

110W-LED
[Specification]
110W LED solar street light
Application
- [Road lighting (urban roads, streets, highways, etc.)
- District lighting (municipal square, commercial area, parking lot, etc)

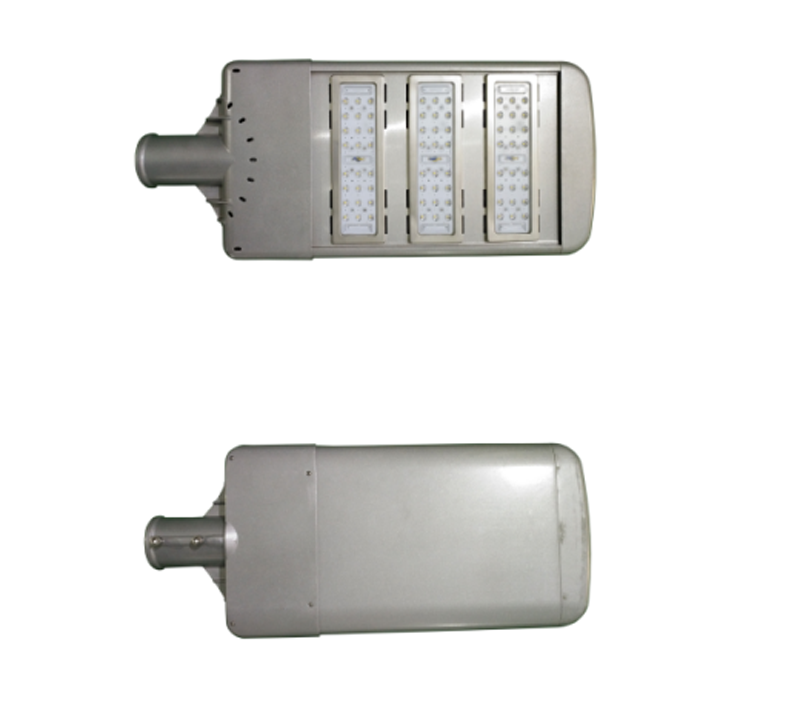

Product appearance view

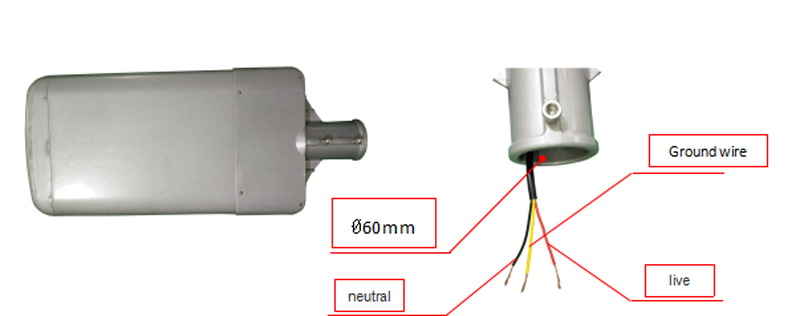

Installation Diameter

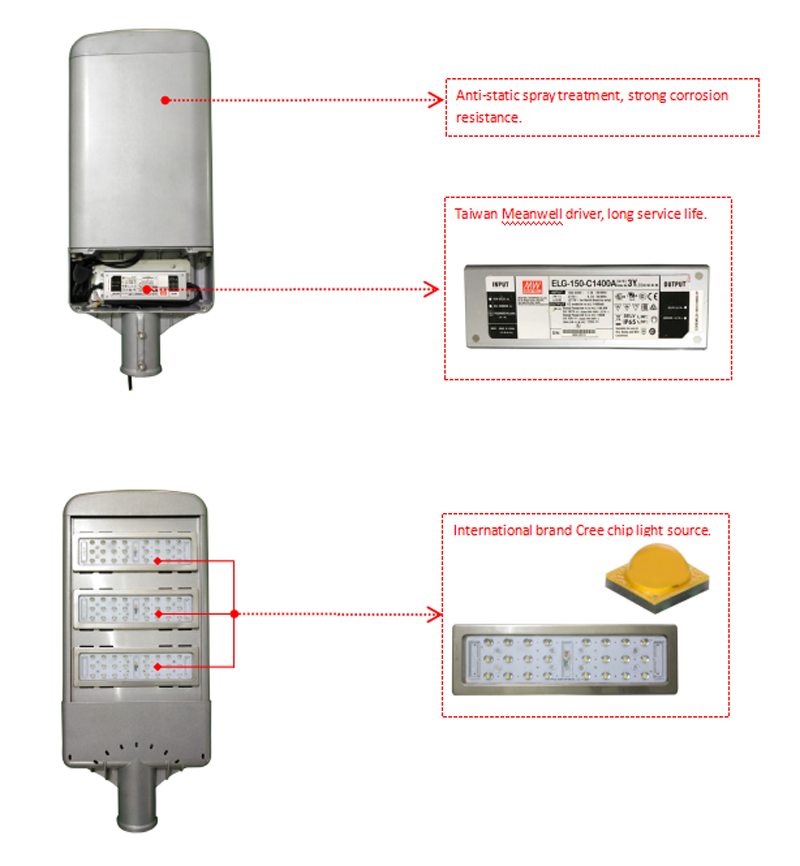

Detailed：
| Product Parameter | |
| Model |
XT685LD110 |
|
LED Quantity |
72 PCS 3535 |
|
Module Quantity( pcs） |
3 |
|
Power：（W） |
110W |
|
Light source brand |
CREE |
|
Power brand
|
Mean well |
|
Base angle |
0° |
|
Input voltage range (V) |
AC 200-240 |
|
Frequency (Hz) |
50/60 |
|
Power Efficiency |
90% |
|
Power factor |
0.95 |
|
Secondary light distribution material: |
PC |
|
Lamp color |
Silver gray |
|
Glare threshold (T) |
≦10 |
|
Protection against electric shock |
I |
|
Electrical insulation rating |
CLASS II |
|
Beam angle（°） |
C0~180 140°/ T90~270 70°
|
|
Protection level |
IP65 |
|
Photoelectric Parameter： |
|
| Color Temperature(K)： |
6000-6500 |
| CRI(Ra)： |
70 |
| Lumens(lm)： |
11000-13200
|
|
Package： |
|
| Net Weight((kg)： |
8.5kg±5% |
| Gross Weight (kg)： |
10.0kg±5%(1pcs/box)
|
| Product Dimension (mm)： |
685×300×76mm±5% |
| Package Dimension(mm)： |
744×349×138mm±5% |
| Quantity in 20/40 Feet Container |
606/1536PCS（托盘）实际以出货为准 |
| Environmental Temperature | |
| Working Temperature (℃)： |
-40～60 |
| Storage Temperature (℃)： |
0～45 |
|
Installing Parameter： |
|
| Diameter of Pole： |
Ø60mm |
| Screw Fixation： |
209 |
| Wind resistance level(km/h)： |
8-10 |
| Installation Height (m)： |
24-30 |
| Installation Distance（m)： |
300 |

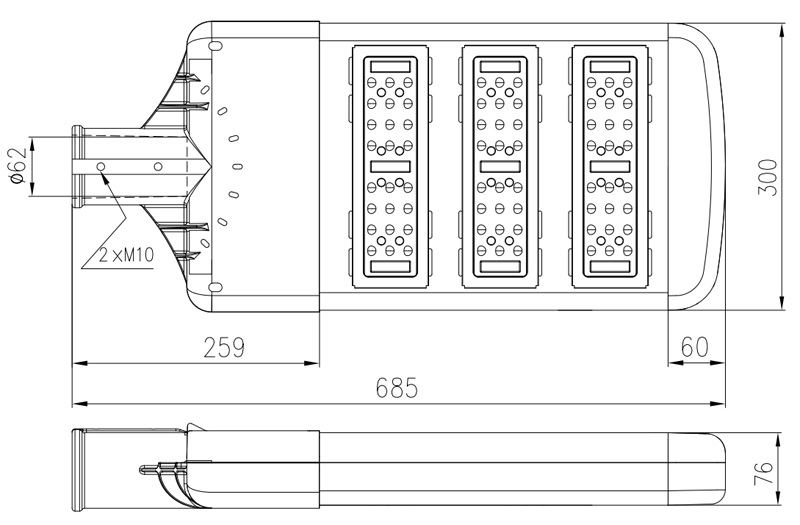

Appearance dimension drawing

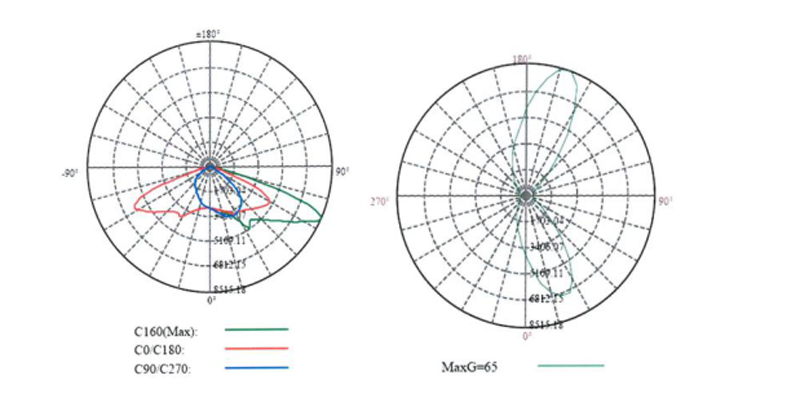

Light distribution curve

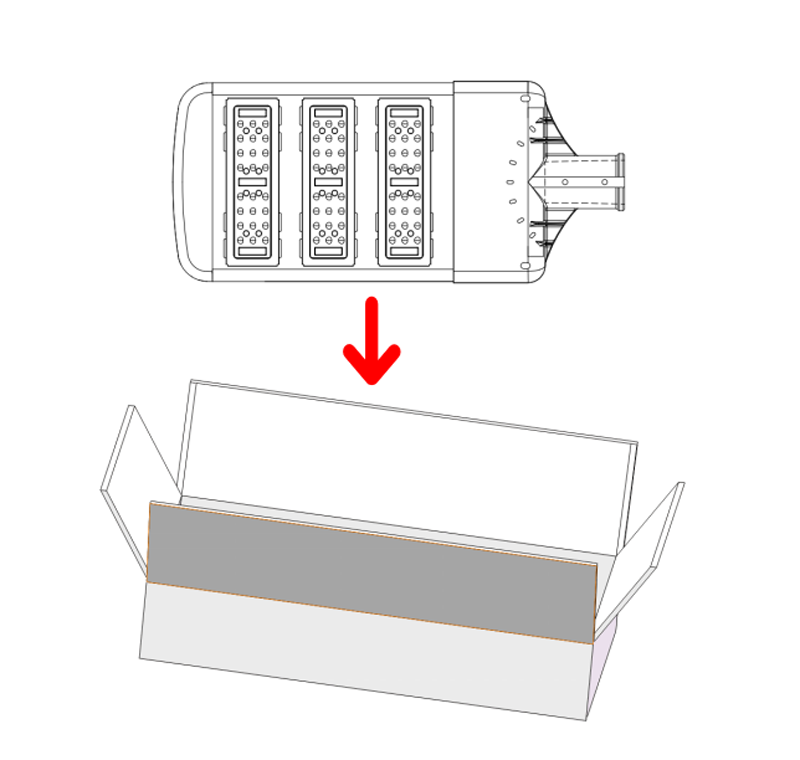

Packaging
Note：Container dimension is as below ：
20 Feet Container：5890×2342×2388mm，Entrance Height is 2280mm；
40HQ：12017×2342×2693mm，Entrance Height is 2580mm.

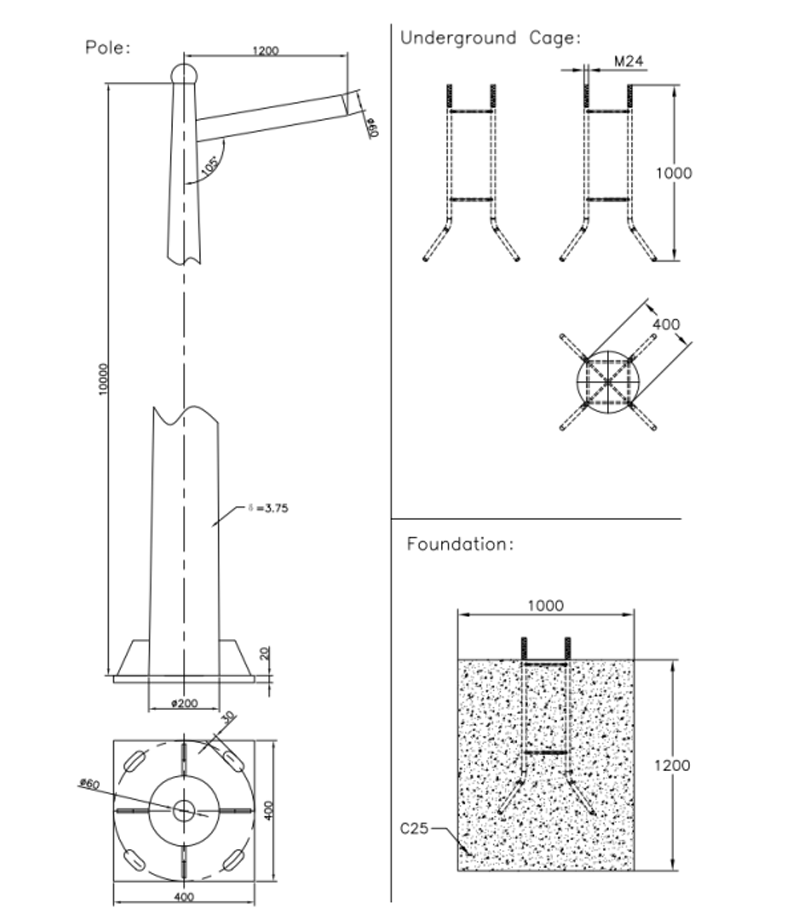

Recommended pole drawing（10m）
110W Illumination simulation-10m
