1.1 Technical Parameters
| Model： | XT635SELD20-J |
| LED Quantity： | 160 （2235） |
| Module Quantity (pcs)： | 1 |
| Power： | 20W |
| Solar Panel： | Monocrystalline Silicon 18V/36W |
| Battery： | Grade A Lithium Ion Battery 15Ah/12V |
| Adjustable Angle of Module(±15°)： | Yes |
| Control Mode： | Light Control+Time Control |
| Working time under full power： | 12h |
| Working time under intelligent power： | 84h |
| Charging time(1000W/m2) | 6h |
| On-off threshold level： | on≦8LUX, OFF≧10LUX |
| Secondary lighting distribution： | Borosilicate |
| Beam Angle： | C0~180 160°/ T90~270 80° |
| Protection Grade： | IP65 |
| Photoelectric Parameter: | |
| Color Temperature(K): | 3,000-6,500K |
| CRI (Ra): | 70 |
| Lumens(lm): | 2,400-2,800lm |
| Intelligent Mode: | Yes |
| Working under rainy days: | 7-10 Days |
| Package: | |
| Net Weight (kg): | 7.0kg |
| Gross Weight (kg): | 15.2kg(2pcs/box) |
| Product Dimension (mm): | 635×355×48mm±5% |
| Package Dimension(mm): | 770×200×395mm±5% |
| Quantity in 20/40 Feet Container | 616/1,620 PCS |
| Environmental Temperature: | |
| Discharging Temperature (℃): | -20～60 |
| Charging Temperature (℃): | -20～60 |
| Storage Temperature (℃): | 0～45 |
| Installing Parameter: | |
| Diameter of Pole: | Ø60mm |
| Screw Fixation: | Yes |
| Wind resistance level (km/h): | 209 |
| Installation Height (m): | 4-5 |
| Installation Distance (m): | 16-20 |
| Irradiation Area(m2): | 100 |

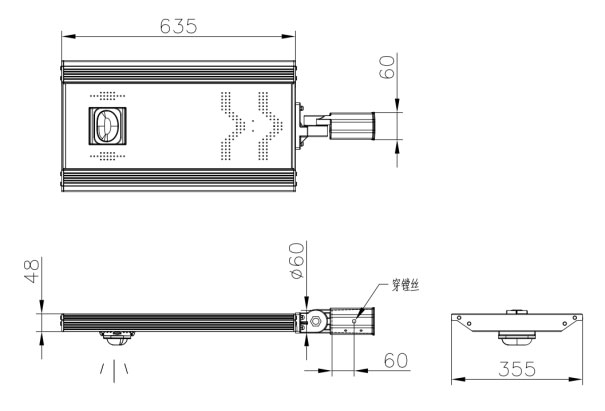

1.2 Product Dimension：（mm）

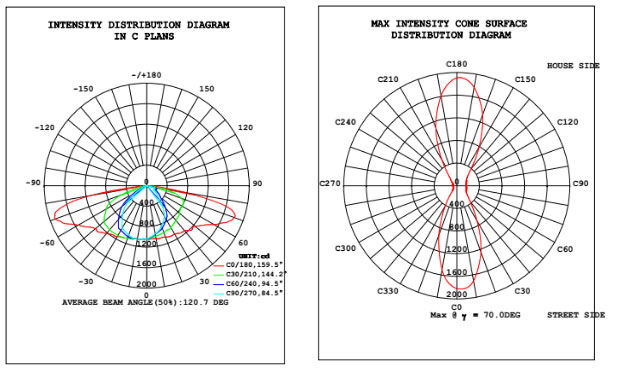

1.3 Light Distributio

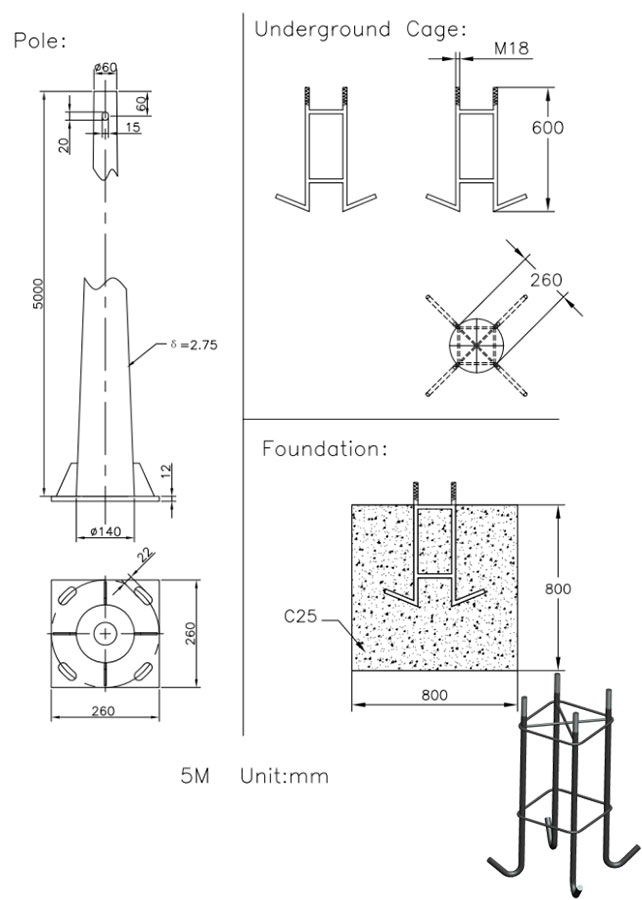

1.4 Light Pole Sketch

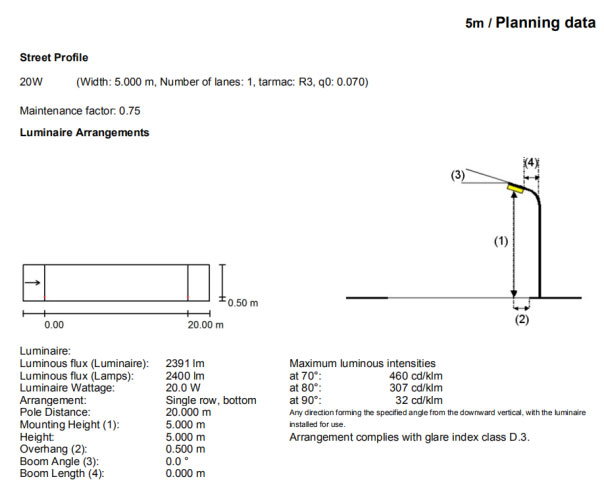

1.5 20W Illumination Simulation-5m
|

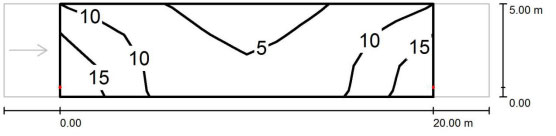

5m / 20W / Isolines (E) |
||||
|
|
||||
|
Values in Lux, Scale 1 : 186 |
||||
| Grid: 10 x 3 Points | ||||
|
Eav [lx] |
Emin [lx] |
Emax [lx] |
u0 |
Emin / Emax |
|
9.91 |
4.07 |
17 |
0.456 |
0.233 |
2 Package

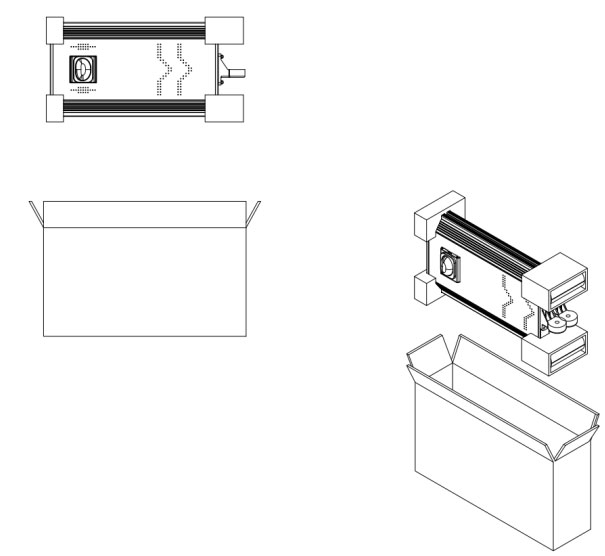

2.1 Package Sketch
2.2 Package List
|
Item |
Products |
Unit |
Quantity |
Note |
|
1 |
20W Solar Street Light |
PCS |
2 |
|
|
2 |
6mm Allen Wrench |
PCS |
1 |
2% |
|
3 |
14mm Allen Wrench |
PCS |
1 |
2% |
|
4 |
Installation Instruction |
PCS |
1 |
|
|
5 |
Certificate of Approval |
Sheet |
1 |
|
|
6 |
Test Report |
PCS |
1 |
2.3 Pallet Sketch
Pallet Size: 1,050×770×115mm
Goods with Pallet Size: 1,050×770×1,350mm
Quantity: 15 Boxes×2pcs/Box=30Pcs
